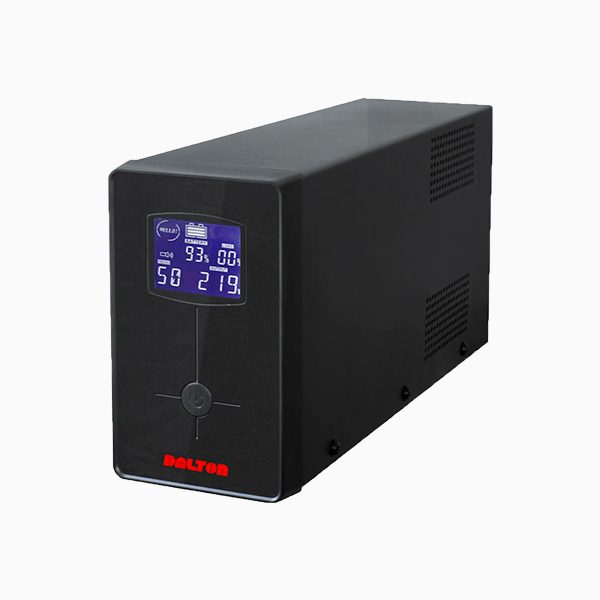

Dalton Smart Line Interactive UPS SM10 Series ( 600VA – 3000VA )
Dalton Smart Line Interactive UPS SM10 Series ( 600VA – 3000VA )
1,00 EGP
Dalton Smart Line Interactive UPS SM10 Series
provide clean and reliable backup power to ensure continued data integrity and optimum file server performance under a wide range of mains conditions
• Fully intelligent line Line-interactive UPS with VI technology.
• AVR buck and boost technology to auto-stabilize voltage fluctuations and extend battery life.
• LCD graphical display for easy and accurate monitoring.
• Double protection for overload/short circuit.
• Smart communications USB and RJ-11/45 port
Description
Dalton Smart Line Interactive UPS SM10 Series ( 600VA – 3000VA )
Dalton Smart Line Interactive UPS SM10 Series ( 600VA – 3000VA ) range of UPS will provide clean and reliable backup power to ensure continued data integrity and optimum file server performance under a wide range of mains conditions. Our advanced power management and diagnostic software package SM10 is available, this will allow Manager or System Integrator to remotely monitor and manage both the UPS and network server.
Dalton Smart Line Interactive UPS SM10 Series Features:
• Fully intelligent line Line-interactive UPS with VI technology.
• AVR buck and boost technology to auto-stabilize voltage fluctuations and extend battery life.
• LCD graphical display for easy and accurate monitoring.
• Double protection for overload/short circuit.
• Smart communications USB and RJ-11/45 ports, interface cables, and monitoring software included.
• Cold start function with the auto-restart facility.
• Microprocessor-based design. Compact design.
• UPS Auto on when AC back.
• Off-mode charging.
• Compatible with Windows, Linux, SCO UNIX, and DOS.
• Intelligent battery management and fast charging.
• Double protection for overload/short circuit.
Dalton Smart Line Interactive UPS SM10 Series Specs:
Specifications
Model | SM10 600VA |
SM10 1200VA |
SM10 1500VA |
SM10 2000VA |
SM10 3000VA |
|
Rating Power | 600VA/360W | 1200VA/720W | 1500VA/900W | 200VA/1200W | 3000VA/1800W | |
Input | Input system | Single Phase | ||||
Voltage range | 176-276VAC (100% load), 120-276VAC (50% load) | |||||
Power factor | ≥0.99 | |||||
Frequency | 50/60Hz | |||||
Output | Output system | Single Phase | ||||
Rated voltage | 208*/220/230VAC | |||||
Power factor | 0.6 | |||||
Voltage precision | ±2% | |||||
Voltage distortion | < 1% THDV on linear load < 5% THDV on non-linear load |
|||||
Output wave form | Simulated Sinewave | |||||
Output frequency | 50/60Hz (±10%) | |||||
Inverter overload capacity (Utility power,25©) |
100-105%: no alarm
105-125% : load transfers to Bypass mode after 10 minutes 125-150% : load transfers to Bypass mode after 30s |
|||||
Transfer time | 0ms | |||||
Crest factor | 3:1 | |||||
DISPLAY/ INTERFACE | LCD Display | LCD Display indicates frequency, voltage, load, battery voltage, etc. LED indicates running status | ||||
LED Status Indicator | Utility power; Battery discharge; Inverter On | |||||
External Communication | USB/RS485 and (RS232 and SNMP adapter are optional) | |||||
PARALLEL | No | |||||
Communication software |
Windows XP/ 2003 and later version; Linux; Unix | |||||
Optional | EX SNMP / dry contact relays / Modbus | |||||
Battery | Batteries voltage | 12VDC | 24VDC | 24VDC | 48VDC | |
Battery Type | Sealed maintenance-free lead –acid battery | |||||
Backup Time (25℃) |
Full load ≥ 5min (Standard) | |||||
Battery quantity | 1 | 2 | 2 | 4 | ||
General | Temperature | 0 ~ 40℃ | ||||
Humidity | <95% (non-condensing) | |||||
Altitude | <1000m | |||||
Efficiency | >90% (Line mode), >92% (Battery mode), >96% (Eco mode) | |||||
FUNCTIONS | Expandable Battery Modules, LCD | |||||
Noise (dB) | <35dB | |||||
Protection | Low battery, overload, over temperature, short circuit, output over voltage, output low voltage | |||||
L*W*H (mm) | 290 x 100 x 140 | 345 x 140 x 170 | 380 x 125 x 225 | 400 x 170 x 250 | ||
Weight (kg) | 5 | 9 | 10 | 14 | 20 |
