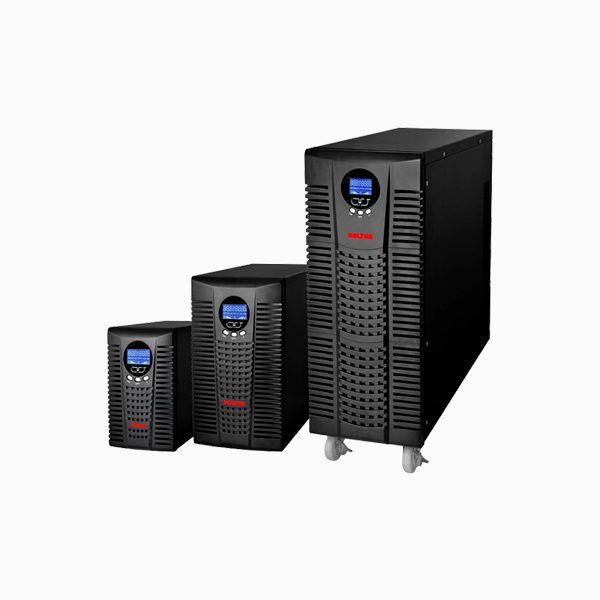

DALTON Smart Online Single Phase UPS- U10 SERIES ( 1KVA – 10kVA)
DALTON Smart Online Single Phase UPS- U10 SERIES ( 1KVA – 10kVA)
1,00 EGP
DALTON Smart Online Single Phase UPS- U10 SERIES
Smart Online Single Phase UPS Double Conversion Technology Pure Sine Wave
• Transformer less UPS Technology
• High Efficiency 96% ECO mode
• Full digital control system
• Maintenance Bypass Switch
• High Input Power Factor
• Optional SNMP Communication Port
• Output power factor 0.9
• Low input current value (THD<3%)
• Cold Start Function
• Automatic Battery Test
• Wide input range
Description
DALTON Smart Online Single Phase UPS- U10 SERIES ( 1KVA – 10kVA)
DALTON Smart Online Single Phase UPS- U10 SERIES ( 1KVA – 10kVA) incorporates double-converter technology with single-phase input and single-phase output. It offers a high-quality power supply with the most significant degree of availability and reliability. The UPS is compact and convenient for users, especially for the basic equipment in some areas such as finance, communication, government, traffic, manufacturing, education, and so on.
Dalton U10 is aspire to introduce the latest DSP true online double conversion UPS for protecting small and medium-sized mission medical, critical & IT loads so as to safeguard your valuable equipment and critical data from any interrupted power, such as surges, blackouts, and lighting strikes.
U10 provides an SNMP which is a popular protocol for network management. It is used for collecting information from, and configuring, network devices, such as servers, printers, hubs, switches, and routers on an Internet Protocol (IP) network
High battery reliability
• Automatic and manual battery test.
• Proper battery care Is critical to ensuring correct UPS operation in emergency conditions. The Dalton UPS battery care system consists of a series of features and capabilities to optimise battery
management and obtain the best performance and operating life possible.
• Unlimited extendible runtime using matching Battery Boxes.
• The batteries do not cut in during mains failures of
DALTON Smart Online Single Phase UPS- U10 SERIES ( 1KVA – 10kVA) Specifications
Model | U10 1K |
U10 1KS |
U10 2K |
U10 2KS |
U10 3K |
U10 3KS |
U10 6K |
U10 6KS |
U10 10K |
U10 10KS |
||
Rating | 1KVA/900W | 2KVA/1800W | 3KVA/2700W | 6KVA/5.4KW | 10KVA/9KW | |||||||
Input | Input system | Single phase & earth ground | ||||||||||
Voltage range | (90±5)VAC~ (300±5)VAC | (120±5)VAC~ (274±5)VAC | ||||||||||
Power factor | ≥0.99 | |||||||||||
Voltage range of bypass | (80±5)VAC~ (286±5)VAC (default: 80VAC~264VAC Could be adjusted by software) | (60±5)VAC~ (300±5)VAC (default: 80VAC~264VAC Could be adjusted by software) | ||||||||||
Output | Output system | Single phase & earth ground | ||||||||||
Rated voltage | 200V/208V/220V/230V/240V | |||||||||||
Power factor | 0.9 | |||||||||||
Voltage precision | ±2% | ±1% | ||||||||||
Voltage distortion | ≤ 3% at linear load | ≤ 2% at linear load | ||||||||||
Output waveform | Pure Sine Wave | |||||||||||
Output frequency | Normal mode | 1.The output frequency synchronizes with the input frequency when the input frequency is in the range of 46Hz~ 54Hz. | ||||||||||
Battery mode | 2.The output frequency is 50Hz when the input frequency is not in the range of 46Hz~ 54Hz.
3.Can be set as 60Hz. |
|||||||||||
Efficiency | 85% | >90% | ||||||||||
Inverter overload capacity
(Utility power, 25Co) |
100% ± 5% < Load ≤ 105% ± 5% Overload warning only
105% ± 5% < Load < 125% ± 5% 10s transfer to bypass Load > 125% ± 5%, 300ms transfer to bypass |
|||||||||||
Transfer time | 0ms (Normal mode←→ Battery mode) | |||||||||||
<4ms (Normal mode←→Bypass mode) | ||||||||||||
Crest factor | 3:1 | |||||||||||
DISPLAY/ INTERFACE | LCD Display | AC/ DC voltages; kVA/ kW; Frequency; Temperature; Battery & load level | ||||||||||
LED Status Indicator | Utility power; Battery discharge; Inverter On | |||||||||||
External Communication | RS232 / RJ11 / Optional Intelligent Slot | |||||||||||
Control | 3 control push button for POWER ON / POWER OFF / FUNCTION KEY | |||||||||||
Communication software | Windows XP/ 2003 and later version; Linux; Unix | |||||||||||
Optional | SNMP Card/ USB Card/ Dry Contact AS400 Card/ CMC Card/ RS485 Card/ EMD Monitoring Device | |||||||||||
Battery | Batteries voltage | 36VDC | 72VDC | 96VDC | 240VDC | 240VDC | 240VDC | 240VDC | ||||
Battery Type | Sealed maintenance-free lead –acid battery | |||||||||||
Backup Time (25Co) | Full load ≥ 5min (Standard) | |||||||||||
Battery quantity | 3 | None | 6 | None | 8 | None | 20 | None | 20 | None | ||
Charge current | 1A | 6.5A | 1A | 5.5A | 1A | 5.5A | 1A | 5.5A | 1A | 5.5A | ||
L*W*H (mm) | 350×144×230 | 425×190×328 | 425×190×328 | 533x260x560 | 425x190x328 | 533x260x560 | 533x260x501 | |||||
Weight (kg) | 11.5 | 6 | 22.5 | 10 | 27.5 | 11 | 55 | 12.5 | 62 | 21 |
Additional information
brand | Dalton |
---|
