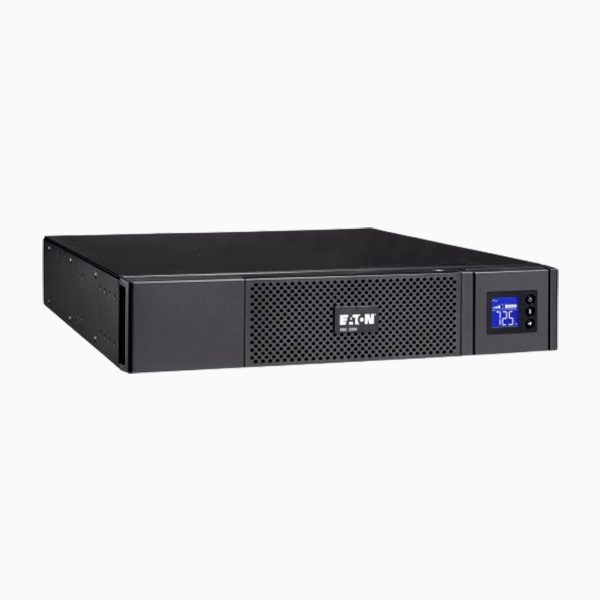

Eaton 5SC 3000 VA Rack/Tower 2U (5SC3000IRT)
Eaton 5SC 3000 VA Rack/Tower 2U (5SC3000IRT) Feautures:
Eaton 5SC UPS, 3000 VA, 2700 W, Input: C20, Outputs: (8) C13, (1) C19, Rack/tower, 2U
General | |
Topology | Line-interactive high frequency with booster + fader, pure sinewave output |
Configuration | Rack/Tower |
Part Number | 5SC3000IRT |
Color | Black |
Rating (VA/Watts) | 3000/2700 |
Dimensions (H x W x D, mm) | 86.2 x 441 x 647 |
Weight (kg) | 35.3 |
Warranty | 2 years |
Electrical Input | |
Connection |
(1) IEC-320-C20
|
Input Voltage Range | 184V-276V |
Nominal Voltage | 230V |
Input frequency Range Without Using Batteries | 45–55Hz (50Hz system), 55–65Hz (60Hz system) |
Electrical Output | |
Voltages | 230V (+6/–10 %) (Adjustable to 220V/230V/240V) |
Outlets |
(8) IEC-320-C13
(1) IEC-320-C19
|
Output Frequency | 50/60Hz +/–0.1 % (autosensing) |
Battery | |
|
|
Battery Management | ABM®, Automatic battery test, deep discharge protection |
Communications | |
Communication Ports | 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) + 1 mini terminal block for remote ON/OFF and Remote Power Off |
Communication Slot | 1 slot for Network management card or Relay card |
Environmental & Standards | |
Audible Noise | <45 dB |
Operating Temperature | 0 to 40°C |
Safety markings | IEC/EN 62040-1, UL 1778 |
EMC Markings | IEC/EN 62040-2 |
Approvals | CE, CB report (TUV) |
