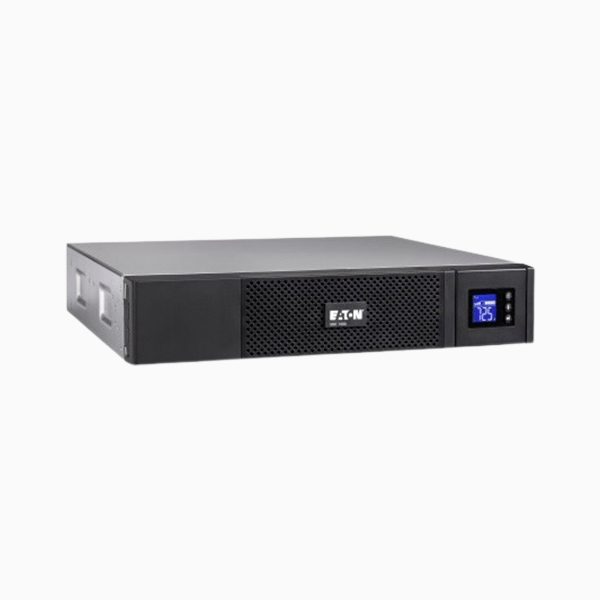

Eaton 5SC UPS Rack 2U 1500VA-1050W (5SC1500IR)
Eaton 5SC UPS Rack 2U 1500VA-1050W (5SC1500IR) Specifications:
GENERAL SPECIFICATIONS
PRODUCT NAME
Eaton 5SC UPS
CATALOG NUMBER
5SC1500IR
PRODUCT LENGTH/DEPTH
440 mm
PRODUCT HEIGHT
86.2 mm
PRODUCT WIDTH
405 mm
PRODUCT WEIGHT
17.78 kg
WARRANTY
3 year factory warranty with online product registration
2 year
COMPLIANCES
CE Marked
TUV
CERTIFICATIONS
UL 1778
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
cTUVus
UPC
743172088338
PRODUCT SPECIFICATIONS
SECONDARY FREQUENCY – MAX
60 Hz
OUTPUT WAVEFORM
Sine wave
WATTAGE
1050 W
OUTPUT POWER FACTOR
0.7
FORM FACTOR
Rack
ENCLOSURE
Black
INCLUDES NETWORK CARD
No
INPUT CONNECTION
C14
INPUT VOLTAGE – MIN
184 V
OUTPUT VOLTAGE – MAX
240 V
SECONDARY FREQUENCY – MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
BATTERY REPLACEMENT
User replaceable
BATTERY TYPE
Lead-acid maintenance-free (replaceable)
EFFICIENCY
97
SPECIAL FEATURES
Automatic Voltage Regulation (AVR)
Delivers clean sinewave output
LCD display for real-time status and measurements
Reliable and affordable UPS for rack servers, networking and storage
Compatible with 500 mm depth enclosures
1 slot for optional com card (Network management card, Relay card or Network and Industrial card)
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Fully integrates with Eaton Intelligent Power Manager software
1 USB port + 1 serial port
Advanced Battery Management (ABM) technology to increase battery lifetime
Hot swappable batteries
Remote ON/OFF and remote Power OFF connectors
Cable locking system
CONSTRUCTION TYPE
482.6 mm (19 inch) device
OUTPUT VOLTAGE – MIN
220 V
COLOR
Black
EXTENDED BATTERY CAPABILITY
No
OUTPUT VOLTAGE RANGE
230 V (+6%/-10%)
TOPOLOGY
Line-interactive
BTU RATING
Online: 211
RUNTIME AT HALF LOAD
13 min
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
INPUT FREQUENCY RANGE
45-55 Hz (50 Hz system), 55-65 Hz (60 Hz system)
INPUT VOLTAGE – MAX
276 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
AUTO SHUTDOWN FUNCTION
Yes
NUMBER OF OUTPUTS C13
8
VA RATING
1500 VA
POTENTIAL FREE SWITCH CONTACT
Yes
RECEPTACLE
(8) C13
PHASE (INPUT)
1
PACKAGE CONTENTS
Rack-mounting kit
Cable locking system
USB cable
Serial cable
(2) IEC-IEC cables
Quickstart guide
Safety instructions
NOISE LEVEL
<40 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
USER INTERFACE
LCD Display
BATTERY QUANTITY
3
RACK SIZE
2U
VOLTAGE
230V
TEMPERATURE RANGE
0-90% non-condensing
ETHERNET INTERFACE
No
COMMUNICATION
USB port (HID compliant)
Serial port (RS232)
Mini-terminal block for remote On/Off and Remote Power Off
Dry contacts (2 outputs, optocoupler, RJ)
RELATIVE HUMIDITY
0-90% non-condensing
RACK MOUNTING KIT
Yes
OUTPUT FREQUENCY
50/60 Hz
RUNTIME AT FULL LOAD
5 min
TYPE OF INTERFACE
Other
PRIMARY FREQUENCY – MIN
45 Hz
BATTERY RATING
12 V / 9 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V default (220/230/240V)
EXPANSION SLOTS
One slot for optional communication card
INPUT VOLTAGE RANGE
184-276 V
NOMINAL FREQUENCY
50-60 Hz
PRIMARY FREQUENCY – MAX
65 Hz
ALTITUDE
3000 m
