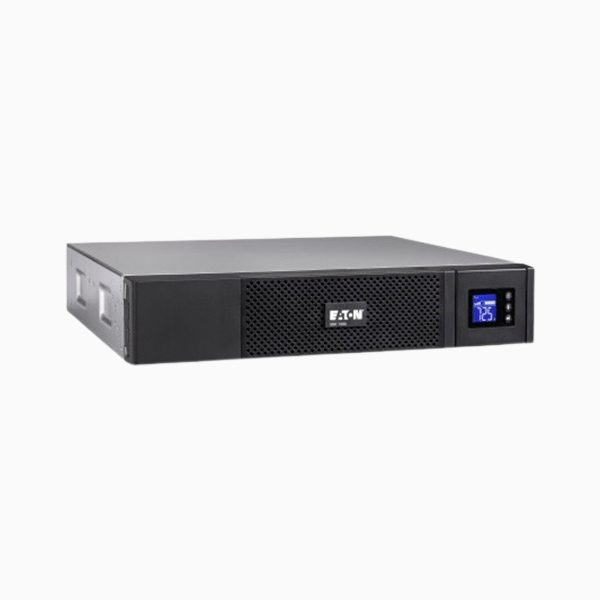

Eaton 5SC UPS Rack 2U 1000VA-700W (5SC1000IR)

Eaton 5SC UPS Rack 2U 1000VA-700W (5SC1000IR)

Eaton 5SC UPS Rack 2U 1000VA-700W (5SC1000IR)

Ideal for protecting:
• Rack or Tower servers
• NAS, Network equipments
• ATMs, Ticket machines, Kiosks


Eaton 5SC UPS Rack 2U 1000VA-700W (5SC1000IR)

Eaton 5SC UPS Rack 2U 1000VA-700W (5SC1000IR) Features:

Rack models are designed to fit into short-depth wall enclosures down to 500mm, 2 post racks, or wall-mounted.

More robust, longer battery life: Eaton ABM® battery management technology uses an innovative three-stage charging system that extends up to 50% of battery life.

Eaton 5SC UPS – Features


  • Compact format for installation in small cabinets (Rack models) or easy integration even with space constraints (Tower models) such as kiosks, cash machines, ticket machines etc…
  • Adaptable to many kind of installation conditions such as standard rack, 2 posts rack, wall mounting (Rack models)
  • LCD interface clearly shows key information
  • Sinewave output for compatibility with today’s small business servers
  • Reliable, long-lasting UPS with patented ABM technology that increases battery service life by up to 50%
  • Serial and USB ports are HID compliant for automatic integration into major OS (Windows/MacOS/Linux)
  • Advanced software capability to adapt to many IT environment, including virtualization platforms (Rack and R/T models)


Eaton 5SC 1000 VA Rack 2U Specifications:

Topology Line-interactive high frequency with booster + fader, pure sinewave output
Configuration Rack 2U
Part Number 5SC1000IR
Color Black
Rating (VA/Watts) 1000/700
Dimensions (H x W x D, mm) 86.2 x 440 x 405
Weight (kg) 14.96
Warranty 2 years
Electrical Input
(1) IEC-320-C14


Input Voltage Range 184V-276V
Nominal Voltage 230V
Input frequency Range Without Using Batteries 45–55Hz (50Hz system), 55–65Hz (60Hz system)
Electrical Output
Voltages 230V (+6/–10 %) (Adjustable to 220V/230V/240V)
(8) IEC-320-C13


Output Frequency 50/60Hz +/–0.1 % (autosensing)
Battery Management ABM®, Automatic battery test, deep discharge protection
Communication Ports 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) + 1 mini terminal block for remote ON/OFF and Remote Power Off
Communication Slot 1 slot for Network management card or Relay card
Environmental & Standards
Audible Noise <45 dB
Operating Temperature 0 to 40°C
Safety markings IEC/EN 62040-1, UL 1778
EMC Markings IEC/EN 62040-2
Approvals CE, CB report (TUV)


Power Infrastructure solutions and products catalogue

Eaton 5SC – Installation and user manual

UPS Quick Guide – IEC version
