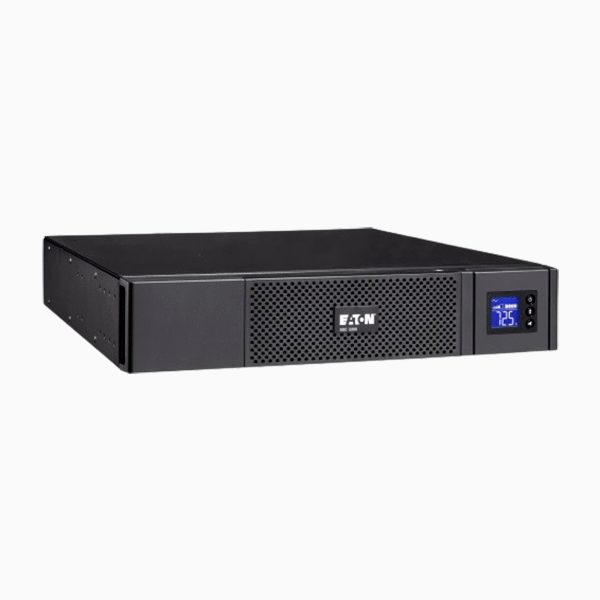

Eaton 5SC 2200 VA 1980W Rack/Tower 2U UPS

The LCD interface provides clear status of the UPS key
parameters such as input and output voltage, load and battery
level, and estimated runtime. Essential configuration capabilities
are also offered for output voltage, audible alarm and sensitivity.
The 5SC offers USB and serial connectivity. USB port is
HID compliant for automatic integration into Windows,
Mac OS and Linux.
A slot for an optional communication card (including
SNMP/ Web card or relay contact card) is available on
rack and R/T models. Eaton’s Intelligent Power®
Software Suite insures compatibility with all major
OS including virtualization software.

Description

Eaton 5SC 2200 VA 1980W Rack/Tower 2U UPS

Eaton 5SC UPS, 2200 VA, 1980 W, Input: C20, Outputs: (8) C13, (1) C19, Rack/tower, 2U

Eaton 5SC UPS – Features

Compact format for installation in small cabinets (Rack models) or easy integration even with space constraints (Tower models) such as kiosks, cash machines, ticket machines etc…
Adaptable to many kind of installation conditions such as standard rack, 2 posts rack, wall mounting (Rack models)
LCD interface clearly shows key information
Sinewave output for compatibility with today’s small business servers
Reliable, long-lasting UPS with patented ABM technology that increases battery service life by up to 50%
Serial and USB ports are HID compliant for automatic integration into major OS (Windows/MacOS/Linux)
Advanced software capability to adapt to many IT environment, including virtualization platforms (Rack and R/T models)


General
Topology	Line-interactive high frequency with booster + fader, pure sinewave output
Configuration	Rack/Tower
Part Number	5SC2200IRT
Color	Black
Rating (VA/Watts)	2200/1980
Dimensions (H x W x D, mm)	86.2 x 441 x 522
Weight (kg)	26.5
Warranty	2 years

Electrical Input
Connection	(1) IEC-320-C20
Input Voltage Range	184V-276V
Nominal Voltage	230V
Input frequency Range Without Using Batteries	45–55Hz (50Hz system), 55–65Hz (60Hz system)

Electrical Output
Voltages	230V (+6/–10 %) (Adjustable to 220V/230V/240V)
Outlets	(8) IEC-320-C13 (1) IEC-320-C19
Output Frequency	50/60Hz +/–0.1 % (autosensing)



Battery Management	ABM®, Automatic battery test, deep discharge protection

Communications
Communication Ports	1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) + 1 mini terminal block for remote ON/OFF and Remote Power Off
Communication Slot	1 slot for Network management card or Relay card

Environmental & Standards
Audible Noise	<45 dB
Operating Temperature	0 to 40°C
Safety markings	IEC/EN 62040-1, UL 1778
EMC Markings	IEC/EN 62040-2
Approvals	CE, CB report (TUV)
