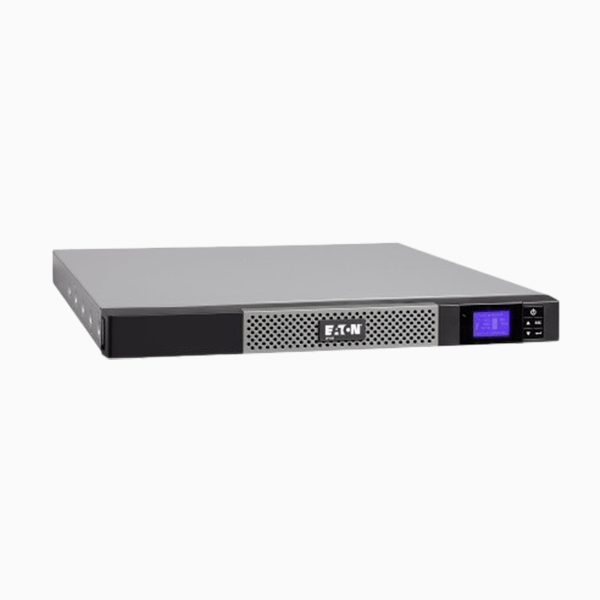

Eaton 5P 850i VA Rack 1U (5P850iR)

Eaton 5P 850i VA Rack 1U (5P850iR)

Eaton 5P 850i VA Rack 1U (5P850iR)

Eaton 5P UPS, 850 VA, 600 W, Input: C14, Outputs: (4) C13, Rack, 1U


Contact Us for more Updates



Eaton 5P 850i VA Rack 1U (5P850iR)

The Eaton 5P 850i VA Rack 1U (5P850iR) is an enterprise-class integrated backup power solution with the flexibility to support network closets, server rooms, distributed IT and edge computing environments

Eaton 5P 850i VA Rack 1U (5P850iR) Features:

Eaton 5P UPS, 850 VA, 600 W, Input: C14, Outputs: (4) C13, Rack, 1U

Topology Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Configuration Rack 1U
Part Number 5P850iR
Rating (VA/Watts) 850/600
Dimensions (H x W x D, mm) 43.2 x 438 x 509
Weight (kg) 13.8
Warranty 3 years on electronics, 2 years on batteries
(Ships with the following items)
Eaton Intelligent Power Software CD
USB cable
Serial cable
Safety guide
Quick start guide
CD with 10-language user manual
Electrical Input
(1) IEC-320-C14


Input Voltage Without Using Batteries 160V-294V (adjustable to 150V-294V)
Input frequency Range Without Using Batteries 47 to 70Hz (50 Hz system), 56.5 to 70Hz (60 Hz system), 40Hz in low-sensitivity mode
Electrical Output
Voltages 230 V (+6/-10 %) (Adjustable to 200V / 220V / 230V / 240V)
Output Receptacles
(4) IEC-320-C13


Remotely controlled sockets 2 groups of C13 (10 A) output receptacles, grouped 1+1
Output Frequency 50/60 Hz +/- 0.1 % (autosensing)
Battery Management ABM® & temperature compensated charging method (user selectable), automatic battery test, deep discharge protection
Cold start (No mains power) Yes
User Interface 3 LEDS + Multilingual LCD : access to measures, alarm messages and customization
Communication Ports 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously), 1 mini-terminal block for remote ON/OFF and Remote Power Off
Communications Card Slots 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Environmental & Standards
Audible Noise < 40 dBA
Operating Temperature 0 to 35°C
Safety markings IEC/EN 62040-1
EMC Markings IEC/EN 62040-2 class B (EMC), IEC/EN 62040-3 (performance), C-Tick
Approvals CE, CB report
Quality Designed, manufactured and marketed under ISO9001 & ISO14001 quality system


Eaton 5P UPS

Eaton 5P UPS 5P Installation and user manual
