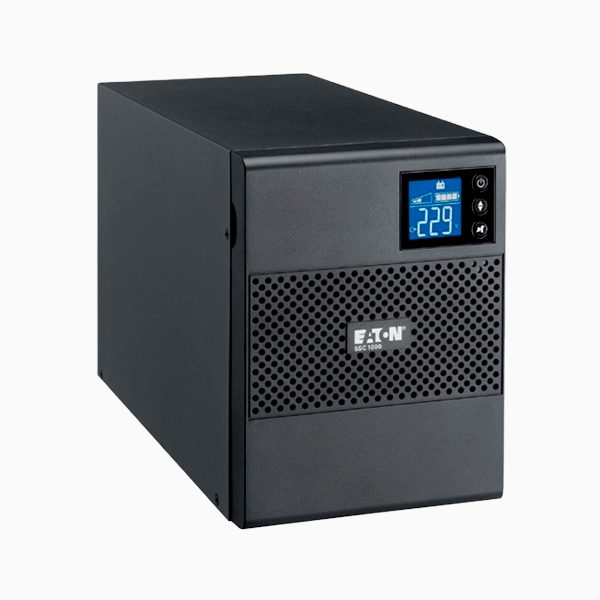

Eaton 5SC 1000 VA Tower Line-interactive UPS (5SC1000i)

Eaton 5SC 1000 VA Tower Line-interactive UPS (5SC1000i)

Eaton 5SC 1000 VA Tower Line-interactive UPS (5SC1000i)

• Pure sinewave output: When operating in battery mode the
5SC provides a high-quality output signal for any sensitive
equipment connected, such as active PFC (power factor
corrected) servers.

Eaton 5SC 1000 VA Tower Line-interactive UPS (5SC1000i)

Eaton 5SC 1000 VA Tower Line-interactive UPS (5SC1000i) Features:

• The LCD interface provides clear status of the UPS key parameters such as input and output voltage, load and battery level, and estimated runtime. Essential configuration capabilities are also offered for output voltage, audible alarm and sensitivity.
• The 5SC offers USB and serial connectivity. USB port is HID compliant for automatic integration into Windows, Mac OS and Linux.
• A slot for an optional communication card (including SNMP/ Web card or relay contact card) is available on rack and R/T models. Eaton’s Intelligent Power® Software Suite insures compatibility with all primary OS including virtualization software.

The Eaton 5SC 1000 VA Tower Line-interactive UPS (5SC1000i) provides line-interactive, affordable and reliable protection for small business server in any kind of installation constraints. Complementing our range of industry leading UPSs, the 5SC includes an LCD interface for real-time status and measurements, implements manageability solutions compatible with most of IT platforms and provides sinewave output for compatibility with most sensitive IT equipments.


Topology Line-interactive high frequency with booster + fader, pure sinewave output
Configuration Tower
Part Number 5SC1000i
Color Black
Rating (VA/Watts) 1000/700
Dimensions (H x W x D, mm) 210 x 150 x 340
Weight (kg) 11.1
Warranty 2 years
Electrical Input
(1) IEC-320-C14

eaton-5sc-1000-va-tower-line-interactive-ups-5sc1000i Technopedia Egypt

Input Voltage Range 184V-276V
Nominal Voltage 230V
Input frequency Range Without Using Batteries 45–55Hz (50Hz system), 55–65Hz (60Hz system)
Electrical Output
Voltages 230V (+6/–10 %) (Adjustable to 220V/230V/240V)
(8) IEC-320-C13

eaton-5sc-1000-va-tower-line-interactive-ups-5sc1000i Technopedia Egypt

Output Frequency 50/60Hz +/–0.1 % (autosensing)
Battery Management ABM®, Automatic battery test, deep discharge protection
Communication Ports 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
Environmental & Standards
Audible Noise <40 dB
Operating Temperature 0–35°C
Safety markings IEC/EN 62040-1, UL 1778
EMC Markings IEC/EN 62040-2
Approvals CE, CB report (TUV)


Power Infrastructure solutions and products catalogue

Eaton 5SC – Installation and user manual

UPS Quick Guide – IEC version
