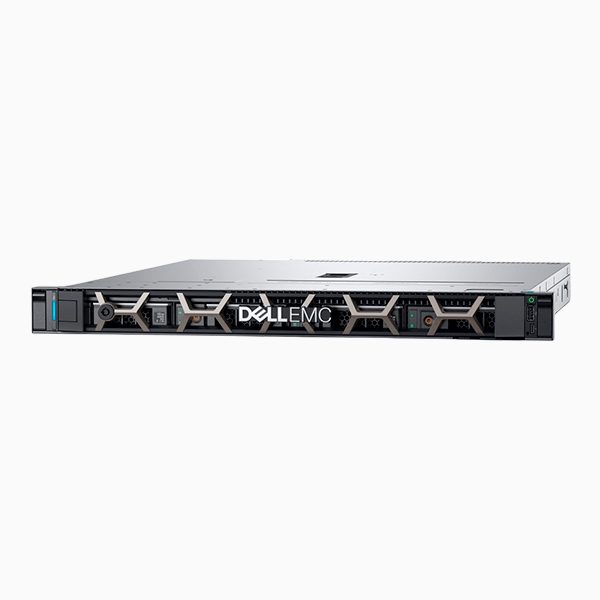

DELL EMC PowerEdge R240 Rack Server
The DELL EMC PowerEdge R240 Rack Server designed for dense environments is the ideal solution for budget-conscious businesses.
The R240 offers features to support your demanding and growing business needs.
• Accelerate your business with improved performance due to 100% more cores with Intel® Xeon® E-2200 processors,
11% increase in memory speed, and 20% more PCIe lanes.1
• Harness data growth with up to 4 x 3.5” cabled hard drives.
• Manage operational costs with Multi-Vector cooling which automatically calculates and delivers the proper airflow
needed for optimal cooling.
Features Technical Specification
Processor 1 processor from the following: Intel® Xeon® E-2200 product family, Intel Pentium®, Intel Core i3®, Intel Celeron®
Memory 4 x DDR4 DIMM slots, Supports UDIMM, up to 2666MT/s, 64GB Max. Supports registered ECC
Storage controllers
Internal boot
Internal controllers: PERC H730P, H330, HBA330
Software RAID: PERC S140
External controllers: 12Gbps SAS HBA
Boot Optimized Storage Subsystem (BOSS): 2 x M.2 240GB (RAID 1 or No RAID) or 1 x M.2 240GB (No RAID only)
Internal Dual SD Module3
: 2x microSD (16GB, 32GB or 64GB) or 1x microSD (16GB, 32GB or 64GB)
Drive bays Up to 4 x 3.5 cabled SATA, SAS (optional) or SSD*
Up to 4 x 3.5 or 2.5 hot-plug SATA, SAS (optional) or SSD*
*available in the hot-plug configuration
Power supplies Single 250W (Bronze) or 450W (Platinum) power supply4
Dimensions Form factor: Rack (1U) Chassis width: 434.00mm (17.08 in)
Chassis depth: 573.596mm (22.58 in) (3.5” HDD config)
Note: These dimensions do not include: bezel, redundant PSU
Chassis weight: 12.2 kg (26.89 lb.)
Embedded management iDRAC9
iDRAC Direct
Bezel Optional security bezel
OpenManage™ Software OpenManage Enterprise OpenManage Power Manager
OpenManage Mobile
Integrations and
connections
Integrations:
Microsoft® System Center
VMware® vCenter™
BMC Truesight (available from BMC)
Red Hat Ansible
Connections:
Nagios Core & Nagios XI
Micro Focus Operations Manager i (OMi)
IBM Tivoli Netcool/OMNIbus
Tools iDRAC Service Module
iDRAC RESTful API with Redfish
OpenManage Server Administrator
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
Dell EMC RACADM CLI
IPMI Tool
Security TPM 1.2/2.0 optional
Cryptographically signed firmware
Silicon Root of Trust
Secure Boot
System Lockdown (requires iDRAC Enterprise or Datacenter)
System Erase
I/O & Ports Networking Options:
2 x 1GbE LOM Network Interface Controller (NIC) ports
Front ports:
1x USB 2.0, 1 x IDRAC micro USB 2.0 management port
Rear ports: 2 x USB 3.0, VGA, serial connector
2 x PCIe Gen 3.0 slots:
• One x8 slot low-profile, half-length with x4 slot width
• One x16 slot low-profile/full-height, half-length
with x8 bandwith
Supported operating
systems
Citrix® XenServer®
Microsoft® Windows Server® with Hyper-V (2016 and 2019)
Red Hat® Enterprise Linux
Ubuntu® Server LTS
SUSE® Linux Enterprise Server
VMware® ESXi
For specifications and interoperability details,
see Dell.com/OSsupport.
OEM-ready version
available
From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you.
For more information, visit Dell.com/OEM
PowerEdge R240 Spec Sheet
PowerEdge R240 Technical Guide
PowerEdge Rack Servers Quick Comparison Guide
PowerEdge R240 Generation Comparison Matrix
PowerEdge Server Solutions Brochure
