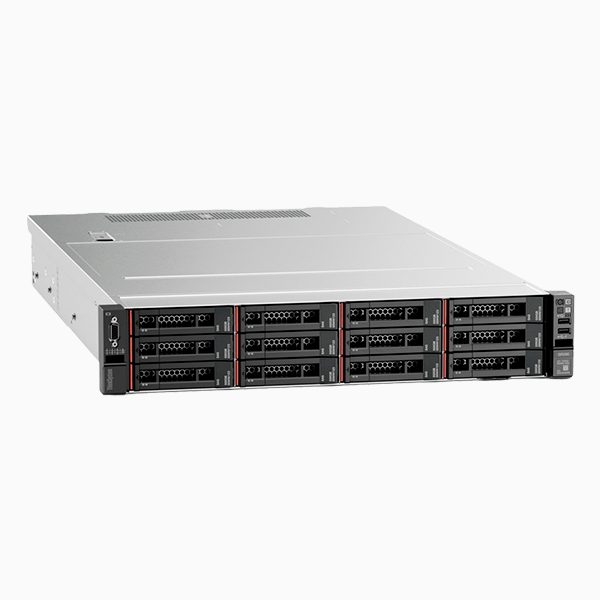

Lenovo ThinkSystem SR590 Server-Xeon Silver 4110 (7X99A08WEA)

Lenovo ThinkSystem SR590 Server-Xeon Silver 4110 (7X99A08WEA)

Lenovo ThinkSystem SR590 Server-Xeon Silver 4110 (7X99A08WEA)

The SR590 server offers the following energy-efficiency features to save energy, reduce operational costs, increase energy availability, and contribute to the green environment:

  • Delivers impressive compute power per watt, featuring 80 PLUS Titanium and Platinum redundant power supplies.
  • Enables customers to lower energy costs with design to meet ASHRAE A4 standards in select configurations.
  • Reduces power drawn with Intel Intelligent Power Capability that powers individual processor elements on and off as needed.
  • Helps reduce power consumption with variable speed fans.
  • Helps achieve lower heat output and reduced cooling needs with Lenovo XClarity Energy Manager that provides advanced data center power notification, analysis, and policy-based management.

Contact Us


Lenovo ThinkSystem SR590 Server-Xeon Silver 4110 (7X99A08WEA)

The Lenovo ThinkSystem SR590 Xeon Silver 4110 offers numerous features to boost performance, improve scalability, and reduce costs:

The Lenovo ThinkSystem SR590 Server-Xeon Silver 4110 (7X99A08WEA) Improves productivity by offering superior system performance with the second generation of the Intel Xeon Processor Scalable Family with up to 24-core processors, up to 35.75 MB of last level cache (LLC), up to 2933 MHz memory speeds, and up to 10.4 GT/s Ultra Path Interconnect (UPI) links.

    • Support for up to two processors, 48 cores, and 96 threads allows to maximize the concurrent execution of multithreaded applications.
    • Intelligent and adaptive system performance with energy efficient Intel Turbo Boost 2.0 Technology allows CPU cores to run at maximum speeds during peak workloads by temporarily going beyond processor thermal design power (TDP).
    • Intel Hyper-Threading Technology boosts performance for multithreaded applications by enabling simultaneous multithreading within each processor core, up to two threads per core.
    • Intel Virtualization Technology integrates hardware-level virtualization hooks that allow operating system vendors to better utilize the hardware for virtualization workloads.
    • Intel Speed Select Technology provides improvements in server utilization and guaranteed per-core performance service levels with more granular control over processor performance.
    • Intel Deep Learning Boost (Vector Neural Network Instruction set [VNNI]) is designed to deliver significant, more efficient Deep Learning (Inference) acceleration for high-performance Artificial Intelligence (AI) workloads.
    • Intel Advanced Vector Extensions 512 (AVX-512) enable acceleration of enterprise-class and high performance computing (HPC) workloads.


Table 1. SR590 system specifications
Attribute Specification
Machine types 7X98 – 1 year warranty
7X99 – 3 year warranty
Form factor 2U rack-mount.
Processor Up to two Intel Xeon Bronze, Silver, Gold, or Platinum Gen 2 processors of up to 150 W TDP:

  • Up to 24 cores (2.1 GHz core speeds).
  • Up to 3.8 GHz core speeds (4 cores).
  • Two UPI links up to 10.4 GT/s each.
  • Up to 35.75 MB cache.
  • Up to 2933 MHz memory speed.

1st Gen Intel Xeon processors are also supported.

Chipset Intel C622.
Memory Up to 16 DIMM sockets (8 DIMMs per processor; 6 memory channels per processor with one DIMM per channel for four channels and two DIMMs per channel for two channels). Support for RDIMMs or LRDIMMs. Memory types cannot be intermixed. Memory speed up to 2933 MHz depending on the processor selected.
Persistent memory Up to 4x 128 GB, 256 GB, or 512 GB TruDDR4 2666 MHz DCPMMs in the DIMM slots. Not supported with 1st Gen Intel Xeon SP processors.
Memory capacity
  • Memory DIMMs only: Up to 1 TB with up to 16x 64 GB RDIMMs (Up to 512 GB per processor).
  • Memory DIMMs and persistent memory modules:
    • App Direct Mode: Up to 2.75 TB with up to 12x 64 GB RDIMMs and up to 4x 512 GB DCPMMs (Up to 1.375 TB per processor).
    • Memory Mode: Up to 2 TB with up to 4x 512 GB DCPMMs (Up to 1 TB per processor).

Note: Server configurations with more than 1 TB of memory capacity per socket (including DCPMMs and RDIMMs) require processors that support up to 4.5 TB (L-suffix) per socket.

Memory protection
  • Processor’s integrated memory controllers: Error correction code (ECC), SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs, requires Intel Xeon Gold or Platinum processors), memory mirroring, memory rank sparing, patrol scrubbing, and demand scrubbing.
  • DCPMM’s onboard memory controllers: ECC, SDDC, DDDC, patrol scrubbing, and demand scrubbing.

Note: In the configurations with DCPMMs, memory mirroring is supported only in the App Direct mode (other DCPMM modes do not support memory mirroring) and applies only to the RDIMMs (DCPMMs are not mirrored). Memory sparing is not supported in the configurations with DCPMMs.

Drive bays
  • Up to 16 SFF hot-swap drive bays:
    • 8x 2.5″ SAS/SATA + 8x 2.5″ SAS/SATA
    • 4x 2.5″ SAS/SATA & 4x 2.5″ AnyBay + 8x 2.5″ SAS/SATA
  • 8 LFF SATA Simple Swap drive bays
  • 8 LFF SAS/SATA hot-swap drive bays
  • Up to 14 LFF hot-swap drive bays:
    • 12x 3.5″ SAS/SATA (front) + 2x 3.5″ SAS/SATA (rear)
    • 8x 3.5″ SAS/SATA & 4x 3.5″ AnyBay (front) + 2x 3.5″ SAS/SATA (rear)
Internal storage capacity
  • 2.5-inch drives:
    • 245.76TB using 16x 15.36TB 2.5-inch SAS/SATA SSDs
    • 32TB using 4x 8TB 2.5-inch NVMe SSDs
    • 38.4TB using 16x 2.4TB 2.5-inch HDDs
  • 3.5-inch drives:
    • 280TB using 14x 20TB 3.5-inch HDDs
    • 107.52TB using 14x 7.68TB 3.5-inch SAS/SATA SSDs
Storage controller
  • 6 Gb Onboard SATA AHCI
  • 6 Gb Onboard SATA RAID (Intel RSTe)
  • 12 Gb SAS/SATA RAID adapters with up to 8GB flash-backed cache
  • 12 Gb SAS/SATA HBA (non-RAID)
  • Onboard PCIe NVMe (non-RAID, requires two processors)
  • 1610-4P NVMe Switch Adapter (non-RAID, only supported with one processor)
Optical drive bays None. Support for an external USB DVD RW Optical Disk Drive (See Optical drives).
Network interfaces
  • 2x Integrated 1 GbE RJ-45 ports (no 10/100 Mb support)
  • Onboard LOM slot for up to 4x 1/10 Gb Ethernet ports:
    • 2x 1 GbE RJ-45 ports (no 10/100 Mb support)
    • 2x 10 GbE RJ-45 ports (no 10/100 Mb support)
    • 2x 10 GbE SFP+ ports (no 10/100 Mb support)
  • Optional Mezzanine LOM (ML2) slot for dual-port 10 GbE cards with SFP+ or RJ-45 connectors.
  • 1x RJ-45 10/100/1000 Mb Ethernet systems management port.
I/O expansion slots Up to six slots. Slot 4 is the fixed slots on the system planar, and the remaining slots depend on the riser cards installed. The slots are as follows:

  • Slot 1: PCIe 3.0 x16 or PCIe 3.0 x8; full-height, half-length (PCIe x16 slot is double-wide)
  • Slot 2: PCIe 3.0 x8; full-height, half-length (not present if the slot 1 is PCIe x16)
  • Slot 3: PCIe 3.0 x8 or ML2 x8; full-height, half-length
  • Slot 4: PCIe 3.0 x8; low profile (vertical slot on system planar)
  • Slot 5: PCIe 3.0 x16; full-height, half-length
  • Slot 6: PCIe 3.0 x8; full-height, half-length

Slot 5 requires the second processor to be installed.

  • Front: 1x USB 2.0 port with XClarity Controller access, 1x USB 3.0 port. Optional 1x VGA port.
  • Rear: 2x USB 3.0 ports and 1x VGA port. Optional 1x DB-9 serial port.
Cooling Three (one processor) or four (two processors) hot-swap system fans with N+1 redundancy.
Power supply Up to two redundant hot-swap 550 W or 750 W (100 – 240 V) High Efficiency Platinum or 750 W (200 – 240 V) High Efficiency Titanium AC power supplies. HVDC support (PRC only).
Video Matrox G200 with 16 MB memory integrated into the XClarity Controller. Maximum resolution is 1920×1200 at 60 Hz with 32 bits per pixel.
Hot-swap parts Drives (select models), power supplies, and fans.
Systems management XClarity Controller (XCC) Standard, Advanced, or Enterprise (Pilot 4 chip), proactive platform alerts, light path diagnostics, XClarity Provisioning Manager, XClarity Essentials, XClarity Administrator, XClarity Integrators for VMware vCenter and Microsoft System Center, XClarity Energy Manager, Capacity Planner.
Security features Power-on password, administrator’s password, secure firmware updates, Trusted Platform Module (TPM) 1.2 or 2.0 (configurable UEFI setting). Optional lockable front bezel. Optional Trusted Cryptographic Module (TCM) or Nationz TPM (available only in PRC). Optional Lenovo Business Vantage security software (available only in PRC).
Operating systems Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. See the Operating systems section for specifics.
Warranty One-year (7X98) or three-year (7X99) customer-replaceable unit (CRU) and onsite limited warranty with 9×5 Next Business Day Parts Delivered.
Service and support Optional service upgrades are available through Lenovo Services: 2-hour or 4-hour response time, 6-hour or 24-hour committed service repair, warranty extension up to 5 years, 1-year or 2-year post-warranty extensions, YourDrive Your Data, Enterprise Software Support, and Basic Hardware Installation Services.
Dimensions Width: 445 mm (17.5 in.), height: 87 mm (3.4 in.), depth: 764 mm (30.1 in.). See Physical specifications for details.
Weight Minimum configuration: 19 kg (41.9 lb), maximum: 26 kg (57.3 lb)


Lenovo ThinkSystem SR590 Server (Xeon SP Gen 1 / Gen 2) Product Guide
