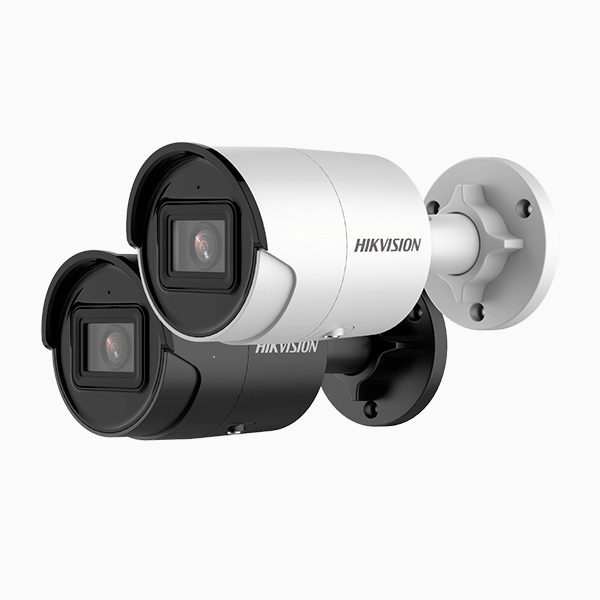

Hikvision 4 MP AcuSense Fixed Bullet Network Camera DS-2CD2043G2-I(U)

Hikvision 4 MP AcuSense Fixed Bullet Network Camera DS-2CD2043G2-I(U)

4 MP AcuSense Fixed Bullet Network Camera

  • High quality imaging with 4 MP resolution
  • Clear imaging against strong backlight due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • -U: Built-in microphone for real-time audio security
  • Water and dust resistant (IP67)
  • Focus on human and vehicle targets classification based on deep learning

Description

Hikvision 4 MP AcuSense Fixed Bullet Network Camera DS-2CD2043G2-I(U)

Hikvision 4 MP AcuSense Fixed Bullet Network Camera DS-2CD2043G2-I(U) Specifications:

Camera

  • Image Sensor1/3″ Progressive Scan CMOS
  • Max. Resolution2688 × 1520
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

  • Focal Length & FOV

    2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°

    4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°

    6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 61°

  • Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
  • Lens MountM12
  • ApertureF1.6
  • Iris TypeFixed

DORI

  • DORI

    2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m

    4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m

    6 mm: D: 120 m, O: 47,m, R: 24,m, I: 12 m

Illuminator

  • Supplement Light RangeUp to 40 m
  • Supplement Light TypeIR
  • IR Wavelength850 nm
  • Smart Supplement LightYes

Video

  • Main Stream

    50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (640 × 480, 640 × 360)

    60 Hz: 30 fps (640 × 480, 640 × 360)

  • Third Stream

    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  • Video Compression

    Main stream: H.265/H.264/H.264+/H.265+

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR/VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region Of Interest (ROI)1 fixed region for main stream and sub-stream

Audio

  • Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/16 Kbps-64 Kbps(AAC)
  • Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering-U: Yes

Network

  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network StorageMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR)
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web Browser

    Plug-in required live view: IE 10, IE 11

    Plug-in free live view : Chrome 57.0+, Firefox 52.0+

    Local service: Chrome 57.0+, Firefox 52.0+


  • Image Parameters SwitchYes
  • Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)120 dB
  • Image EnhancementBLC, HLC, 3D DNR
  • SNR≥ 52 dB

Interface

  • Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
  • Built-In Microphone-U: Yes
  • Reset KeyYes

Event

  • Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart Event

    Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))

    Face detection

  • LinkageUpload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture

General

  • Power

    12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection

    PoE: 802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.13 A, max. 7 W

  • DimensionØ70 × 161.7 mm (Ø2.76″ × 6.37″)
  • Package Dimension216 mm × 121 mm × 118 mm (8.6″ × 4.8″ × 4.7″)
  • Approx. 490 g (1.1 lb.)
  • With Package WeightApprox. 724 g (1.6 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • General FunctionAnti-flicker, heartbeat, password reset via e-mail, pixel counter
  • Language

    33 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP67 (IEC 60529-2013)
