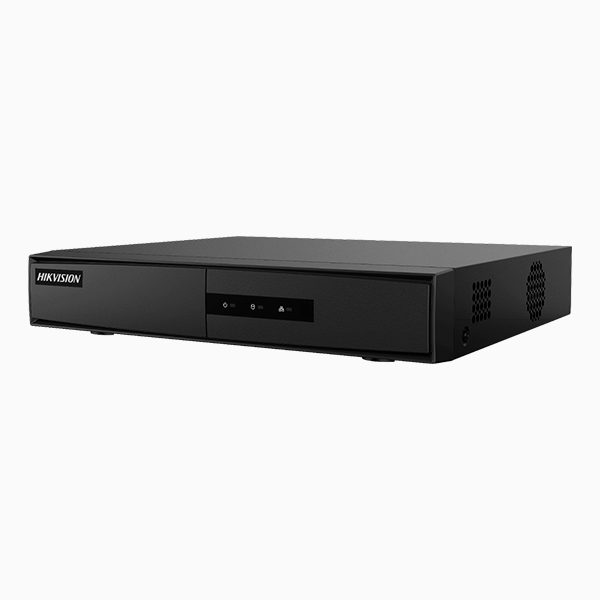

Hikvision 8-ch Mini 1U NVR DS-7108NI-Q1/M

8-ch Mini 1U NVR

  • H.265+/H.265/H.264+/H.264 video compression
  • Up to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
  • Up to 8-ch network camera inputs
  • Up to 4-ch 1080p decoding capability
  • HDMI and VGA simultaneous output

Hikvision 8-ch Mini 1U NVR DS-7108NI-Q1/M

Hikvision 8-ch Mini 1U NVR DS-7108NI-Q1/M Specifications:



Video And Audio

  • IP Video Input

    8-ch

    Up to 4 MP resolution

  • Incoming Bandwidth60 Mbps
  • Outgoing Bandwidth60 Mbps
  • HDMI Output1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output ModeHDMI/VGA simultaneous output

Decoding

  • Decoding FormatH.265+/H.265/ H.264+/H.264
  • Recording Resolution4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous Playback8-ch
  • Decoding Capability4-ch@1080p (25 fps), 2-ch@4 MP (25 fps)
  • Stream TypeVideo, Video & Audio

Network

  • Remote Connection16
  • Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
  • Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface

Auxiliary Interface

  • SATA1 SATA interface
  • CapacityUp to 6TB capacity for each disk
  • Alarm In/OutN/A
  • USB InterfaceRear panel: 2 × USB 2.0

General

  • Power Supply12 VDC, 1.5 A
  • Consumption≤ 10 W
  • Working Temperature-10 to +55º C (+14 to +131º F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)265 × 225 × 48 mm (10.4″ × 8.9″ × 1.9″)
  • ≤ 1 kg (2.2 lb)

Certification

  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN50130-4, EN 61000-3-2,EN 61000-3-3



Hikvision 8-ch Mini 1U NVR DataSheet
Hikvision 8-ch Mini 1U NVR Quich Start Guide
