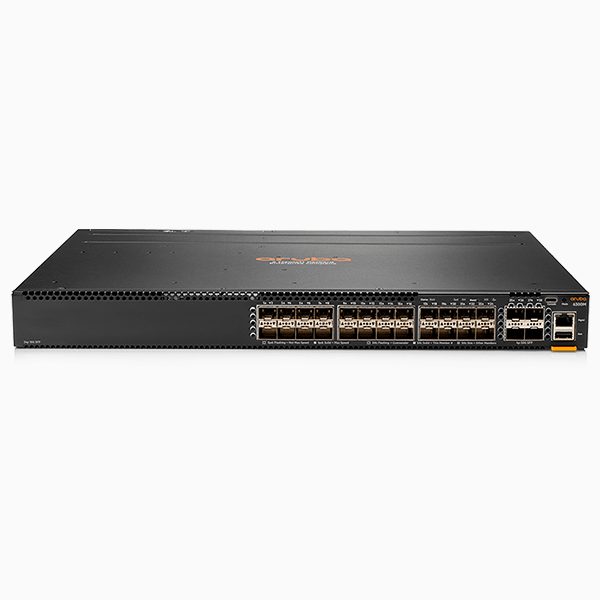

HPE Aruba 6300M 24-port SFP+ and 4-port SFP56 Switch JL658A

HPE Aruba 6300M 24-port SFP+ and 4-port SFP56 Switch JL658A

HPE Aruba 6300M 24-port SFP+ and 4-port SFP56 Switch JL658A

  • Stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS
  • High performance 880 Gbps system switching capacity, 660 MPPS of system throughput and up to 200 Gbps stacking bandwidth
  • Compact 1U switches with full density HPE Smart Rate (1/2.5/5GbE) multi-gigabit, 60W PoE and SFP+ models
  • Power-to-port switch bundle with back-to-front airflow ideal for data center 1GbE ToR and OOBM deployments
  • Built-in high speed 10GbE/25GbE uplinks1 (50GbE1 transceiver capability will be enabled in future software release)
  • 50GbE connectivity with 50GbE DACs1
  • Intelligent monitoring, visibility, and remediation with Aruba Network Analytics Engine
  • Manage via a single pane of glass with Aruba Central across wired, wireless, and WAN
  • Aruba NetEdit support for automated configuration and verification
  • Aruba Dynamic Segmentation enables secure and simple access for users and IoT

Description

HPE Aruba 6300M 24-port SFP+ and 4-port SFP56 Switch JL658A

The Aruba CX 6300 Switch Series is a modern, flexible and intelligent family of stackable switches ideal for enterprise network access, aggregation, core and data center top of rack (ToR) deployments. Created for game-changing operational efficiency with built-in security and resiliency, the HPE Aruba 6300M 24-port SFP+ and 4-port SFP56 Switch JL658A provide the foundation for high-performance networks supporting IoT, mobile and cloud applications.

Built from the ground up with a combination of cutting-edge hardware, software and analytics and automation tools, the stackable 6300 switches are part of the Aruba CX switching portfolio, designed for today’s enterprise campus, branch and data center networks. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the 6300 switches provide industry-leading monitoring and troubleshooting capabilities for the access layer.

The Aruba CX 6300 Switch Series is based on AOS-CX, a modern, database-driven operating system that automates and simplifies many critical and complex network tasks. A built-in time series database enables customers and developers to utilize software scripts for historical troubleshooting, as well as analysis of past trends. This helps predict and avoid future problems due to scale, security, and performance bottlenecks.

JL658A Specification

JL658A Specification

Ports (24 1G/10G SFP+ ports, (4) 1/10/25/50G SFP ports
Memory and processor Quad Core ARM Cortex™ A72 @ 1.8GHz, 8 GBytes DDR4 32 GBytes eMMC 8 MB Shared Packet Buffer Memory
Latency 1Gbps: 1.99µSec, 10Gbps: 1.49µSec, 25Gbps: 2.85µSec 50Gbps: 2.82µSec
Throughput 654 Mpps
Switching capacity 880 Gbps
PoE capability Up to 2,880 W, depending on model and installed power supplies
Stacking capabilities Up to 10 switches per stack
Input voltage 100-240 VAC
External I/O Ports (24 1G/10G SFP+ ports, (4) 1/10/25/50G SFP ports
Power Consumption 85 W (maximum)
Management Features Aruba AirWave Aruba Central Network Management Aruba NetEdit Command-line interface SNMP v2c/v3 RMON
Product Dimensions (imperial) 1.73 x 17.4 x 15.2 in

Aruba 6300M 24-port SFP+ and 4-port SFP56 Switch JL658A DataSheet
