DELL EMC Networking PowerSwitch N1524

DELL EMC Networking PowerSwitch N1524

DELL EMC Networking PowerSwitch N1524

• Up to 48 line-rate GbE RJ-45 ports and four integrated 10GbE SFP+ ports.

• Up to 48 ports of PoE+ with an optional external power supply.

• Up to 200 1GbE ports in a 4-unit stack for high-density, high-availability in IDFs, MDFs and wiring closets.

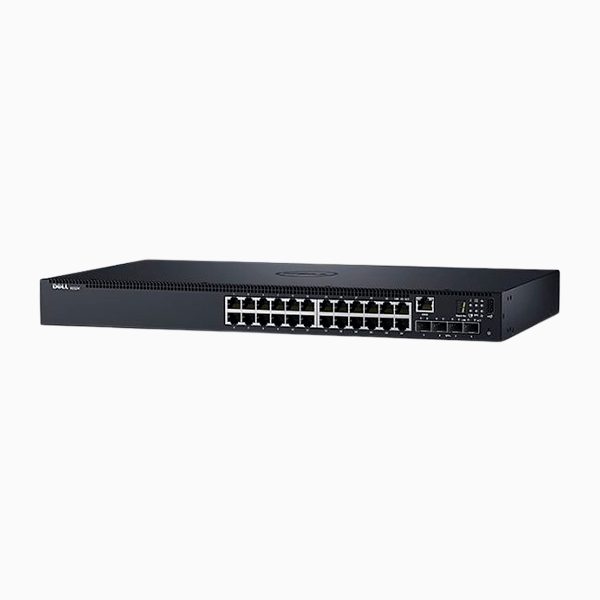

DELL EMC Networking PowerSwitch N1524

The DELL EMC Networking PowerSwitch N1524 offers a power-efficient Gigabit Ethernet (GbE) network-access switching solution with integrated 10GbE uplinks. The N1500 switch series has high-performance capabilities and wire-speed performance, utilizing a non-blocking architecture to handle unexpected traffic loads easily. These switches offer simple management and scalability via a 40Gbps (full-duplex) high-availability stacking architecture that allows management of up to four switches from a single IP address

The Dell Networking N1500 Series has options for up to 48 Power-over-Ethernet Plus (PoE+) ports. You can attach devices with high power requirements (up to 30.8 watts) without running a separate power cable. PoE+ is particularly useful in older buildings where installing power to multiple, widespread locations can be prohibitively expensive.

DELL EMC Networking PowerSwitch N1524 Specification

N1524 Specification


Rack Height 1U
Rack-mounting kit Y
Ready Rails™ rack mounting system, no tools required not available
Dimensions in inches 1.7 x 17.3 x 10.1
Dimensions in millimeters 43.5 x 440.0 x 257.0

Power and Cooling Hardware

Internal hot swappable power supply bays not available
Hot swappable power supplies (included) not available
Integrated power supply (not removable) standard
External power supply option available
Power supply redundancy option available
Removable fans not available
Redundant fans standard
Variable speed fans standard
Air flow IO to PSU (normal)
Integrated rear mini-SAS stacking ports not available
Power Supply (Watts) 40
Max Thermal Output (BTU/hr) 103.1
Power Consumption Max (Watts) 30.2

Stacking Attributes

User port stacking Y
Maximum stacking distance (meters) 100
Maximum stacking speed (full-duplex) 40Gbps

Environmental Operating Conditions

Operating Temperature in Celsius 0° to 45° C
Operating Temperature in Fahrenheit 32° to 113° F
Storage Temperature in Celsius -40° to 65° C
Storage Temperature in Fahrenheit -40° to 149° F
Operating Relative Humidity 95%
Storage Relative Humidity 85%
Power Supply Efficiency 80% or better in all operating modes


The DataSheet
