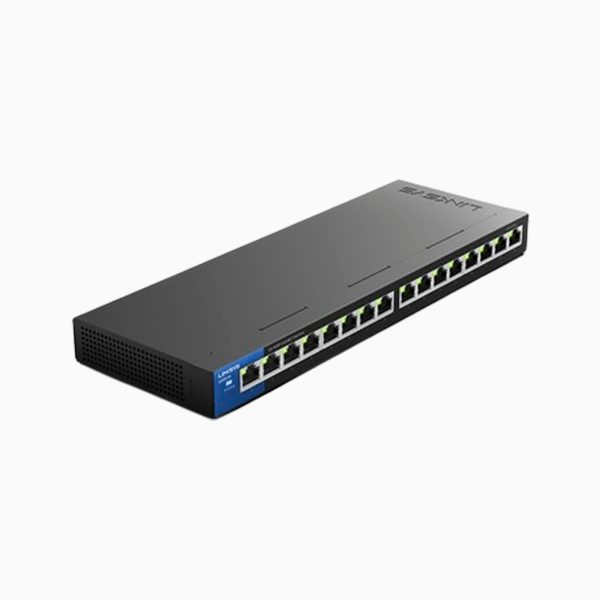

Linksys LGS116 16-Port Business Desktop Gigabit Switch

Accelerate your performance and productivity when you send large files to network servers, drives, and printers at Gigabit speeds.

  • Wired connection speed up to 1000 Mbps
  • 16 Gigabit Ethernet auto-sensing ports
  • Easy plug & play connection
  • QoS
  • Meets EEE (Energy Efficient Ethernet) 802.3az standard

$70.00

Linksys LGS116 16-Port Business Desktop Gigabit Switch



Linksys LGS116 16-Port Business Desktop Gigabit Switch  Specifications:

TECHNICAL SPECS

  • Model Name:
    LGS116
  • Network Standards:
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3x
    • IEEE 802.3ab
    • IEEE 802.3az
  • Ports:
    16 Gigabit Ethernet (10/100/1000) Ports
  • LEDs:
    Link, speed, and activity indicators
  • Performance:
    • Full line rate and forwarding rate of 64B frame at:
    • 1.488Mpps for 1000M port
    • 0.1488Mpps for 100M port
    • 0.01488Mpps for 10M port
  • MAC Address Table Size:
    8K
  • Bandwidth:
    32 Gbps (non-blocking)
  • Fans:
    None
  • Minimum System Requirements:
    Connected devices need Ethernet connectivity and Ethernet cables
  • Dimensions (LxWxH):
    288 x 102 x 26 mm
  • Weight:
    0.703 kg
  • Power:
    12 VDC, 1 A
  • Power Consumption:
    2.36W/8.01W
  • Power Consumption:
    2.66 W / 9.32 W
  • Power Saving:
    Cable connected detection, sleep mode
  • 2 Monitors:
    External
  • Operating Temperature:
    0–50°C
  • Storage Temperature:
    -40–70°C
  • Operating Humidity:
    10–90% (non-condensing)
  • Storage Humidity:
    10–90% (non-condensing)
  • Quality Of Service:
    802.1p and DSCP
  • Regulatory Compliance:
    FCC Class B, CE



The Data Sheet
