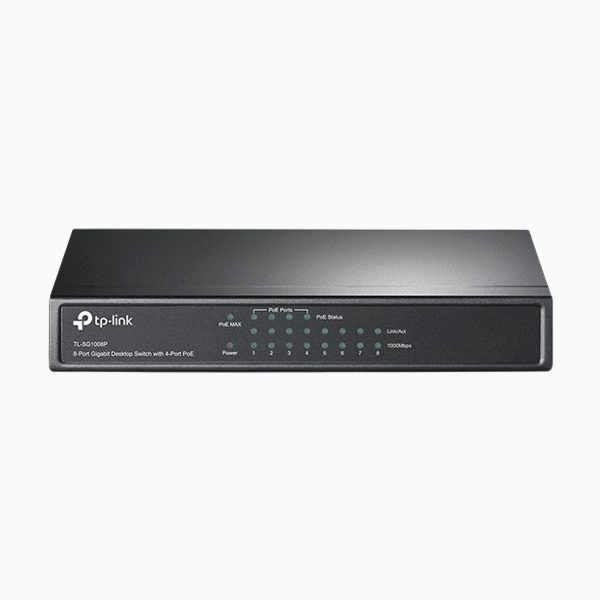

TP-Link 8-Port Gigabit Desktop Switch with 4-Port PoE TL-SG1008P V3

TP-Link 8-Port Gigabit Desktop Switch with 4-Port PoE TL-SG1008P V3

TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE

  • 8 10/100/1000Mbps RJ45 ports
  • With four PoE ports, transfers data and power on one single cable
  • Working with IEEE 802.3af compliant PDs, expands home and office network
  • Requires no configuration and installation
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • PoE power up to 15.4W for each PoE port
  • PoE power up to 55W for all PoE outputs

Description

TP-Link 8-Port Gigabit Desktop Switch with 4-Port PoE TL-SG1008P V3

TP-Link 8-Port Gigabit Desktop Switch with 4-Port PoE TL-SG1008P V3 has 4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

HARDWARE FEATURES
Interface 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock No
External Power Supply External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45) Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 55W
Backbound Bandwidth 16Gbps
Mac Address Table 4K
Dimensions ( W x D x H ) 6.7 × 3.9 × 1.1 in.
(171 × 98 × 27 mm)
Max Power Consumption 5.5W(no PoE load)
65.2W(with 55W PoE load)
Max Heat Dissipation 18.7 BTU/h (no PoE load)
222.6 BTU/h (with 55W PoE load)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS
OTHERS
Certification FCC, RoHS
Package Contents TL-SG1008P, Power Adapter, Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing

For More TP-Link Products, Check the TP-Link Products Page.
