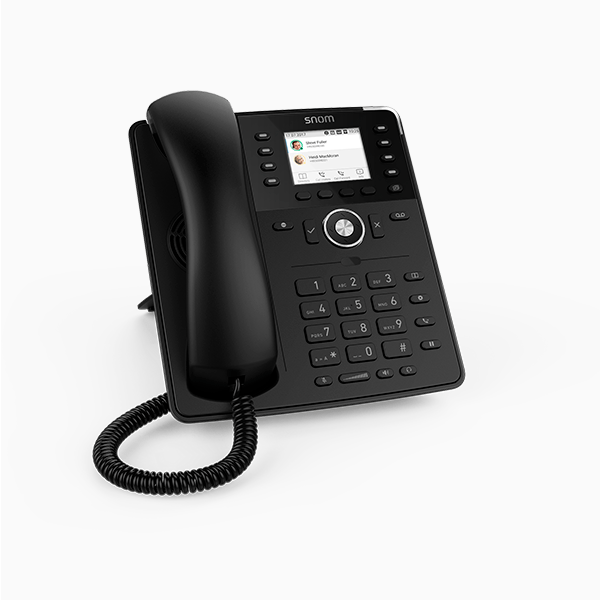

Snom D735 Desk Telephone
The new Snom D735 Desk Telephone hits the right notes thanks to its timeless design and the two modern colour variants – this telephone is on the cutting edge, both technically and in terms of appearance.
The high-resolution 2.7” colour display is surrounded by eight multicoloured function keys that you can label yourself.
In order to constantly show the user all the important information they could need, the Snom D735 has a built in motion sensor – our first VoIP telephone to have such a feature! As soon as the user’s hand approaches the display or the function keys, the display springs to life and automatically shows all the relevant key assignment information. When you move your hand away again, the display reverts to its normal mode. This smart sensor expands the functionality of the D735 enormously and supports the user in their day to day activities.
Of course, the Snom D735 also benefits from the tried and tested HD audio quality that has become standard for our telephones. Thanks to this quality, you would be excused for thinking that the person you’re talking to were sitting right next to you! This is made possible due to the integrated ‘Digital Signal Processors’ (DSP), which optimise sound quality in real time, filter out background noise and do so much more. Three-way conferences are also possible with next to no effort.
The Snom D735 also has an integrated gigabit switch with Power over Ethernet (PoE) functionality, as well as a USB port so you can swiftly connect accessories, like USB headsets, to the device.
[embedyt] https://www.youtube.com/watch?v=-rVJ-cUh6WA[/embedyt]
The Snom D735 is a compact all rounder and is perfect for all possible uses thanks to its modern and smart functions, as well as the timeless design and colour variants. The new, optimised firmware allows each user to forward calls at the touch of a button, initiate conference calls or mute the telephone temporarily.
Features:
- 12 SIP identities / accounts
- XML browser
- Call lists for dialed, received, missed calls
- Local directory with 1000 entries
- Multiple language support
- DTMF in-band / out-of-band / SIP-INFO
- Interoperable with all major IP PBX platforms
Call Features:
- Speed dialing
- URL dialing
- Local dial plan
- Automatic redial on busy
- Call completion (busy/unreachable)(2)
- Caller identification
- Call waiting
- Call blocking (deny list)
- Auto anwer
- Hold
- Music on hold (2)
- Blind and attended transfer
- Call forwarding
- 3-way conferencing on the phone
- Extension monitoring, call pickup(2)
- Call park, call unpark(2)
- Multicast paging
- DND mode (do not disturb)
- Keyboard lock
- Client matter code (CMC)(2)
- Unified Communications ready
Audio:
- Codecs
- G.711 A-law, µ-law
- G.722 (wideband)
- G.726, G727AB, GSM 6.10 (FR)
- Built-in assignable ringtones
- Comfort noise Generator (CNG)
- Voice Activity Detection (VAD)
Setup:
- Configurable though web interface
- Provisioning:
- Automatic loading of settings via HTTP/HTTPS/TFTP
- DHCP Options 66/67
- Snom Redirection Service
- Remote management via TR-069 / TR-111
Protocols:
- SIP (RFC3261)
- DHCP, NTP
- HTTP / HTTPS / TFTP
- LDAP (Directory)
- Dual Stack IPv4 / IPv6
User Interface:
- Localization (language, time, dial, tone)
- RED LED for call indication / message waiting
- 4 contect-sensitive keys
- 32 (8 physical) programmable line / function keys with multicolour LEDs
- Dedicated keys for: Message, DND, Directory, Menu, Transfer, Hold, Page
- Audio keys with LED indication: Mute, Speakerphone, Headset
- Volume key
- 5-way navigation key
- OK and Cancel keys
- Sensor-assisted user interface
Security:
- 802.1X authentication and EAPOL
- Transport layer security (TLS)
- SRTP (RFC3711), SIPS, RTCP
- HTTP server/client
- password-protected web interface
- VPN-support
- VLAN (IEEE 802.1Q)
- LLDP-MED, RTCP-XR
Phone Features:
- Dimensions (approx.):
- 205 x 185 x 40 mm (LxWxD) w/o foot stand
- 205 x 185 x 22/220 mm (LxWxD) with foot stand
- Weight (approx.) device 450g, footstand 120g
- Input voltage: 5Vdc (SELV)
- Power supply: PoE or 5Vdc power adapter (1), 10 Watts
- Handset: 4P4C
- Headset: 4P4C; Support for Snom EHS Advanced
- Hearing-aid compatible (HC) handset
- 1x USB 2.0 host port, Type A
- Environmental conditions:
- Ambient temperature: 0°C to 35°C (32°F to 95°F)
- Storage temperature: -10°C to 45°C (14°F to 113°F)
- Humidity: 5% to 95% (non-condensing)
- Included in delivery:
- Phone unit
- Footstand
- Handset with cord
- Ethernet cable
- Quick start guide
- Colour: black or white
- Warranty: 3 Years
Part numbers:
Optional accessories:
00004011 D7 Expansion Module (Black)
00004325 Power adapter Snom A6 / EU clip
00001168 UK clip for Snom A6
00004394 Snom Power Adaptor 10W
00004395 UK clip for Snom Power Adaptor
00002362 Snom EHS Advanced
00003820 Wallmount plate für 7-series
00004387 DECT-Headset Snom A170
00004341 A100M Headset
00004342 A100D Headset
00004343 ACUSB Headset adaptor
Typ Approvals:
- CE Mark
- Safety IEC 60950
(1) Optional accessory (see below for part numbers)
(2) If supported by PBX
