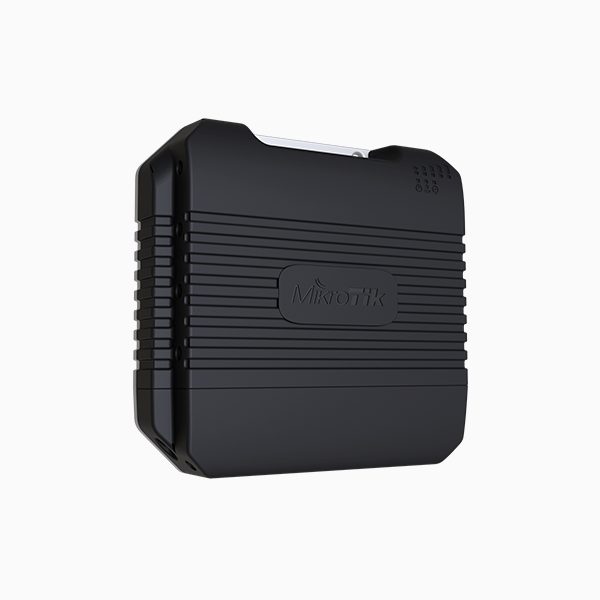

MikroTik LtAP LTE kit RBLtAP-2HnD&R11e-LTE
MikroTik LtAP LTE kit RBLtAP-2HnD&R11e-LTE is A heavy-duty 2.4GHz access point with extra miniPCI-e slot, three SIM slots, GNSS support (GPS, GLONASS, BeiDou, Galileo) and LTE modem for International bands 1,2,3,7,8,20,38 and 40
Introducing LtAP LTE kit– a heavy-duty 4G (LTE) access point with GPS support.
The new LtAP LTE kit is a compact 4G (LTE) capable weatherproof wireless access point – perfect for busy urban environment or off-the-grid outdoors networking. It has a built-in cellular modem that supports 4G (LTE) connectivity – no need for additional devices, it works out of the box.
Its high power 2.4 GHz 802.11b/g/n wireless capability provides secure access to LTE network from your phone or any other wireless device with up to 150 Mbps download speed. You can also use a Gigabit Ethernet LAN port for your wired devices. There are several power options – DC jack, POE-in and automotive.
The rugged and extremely durable case with a special wall mounting kit will be perfect for almost any challenge: from public transportation, food trucks or logistics to harsh winter and stormy desert environment. LtAP can handle any temperature from -40 C° to +70 C°. It is a perfect solution for tracking vehicles in real time. We have provided a simple tracking application example in the RouterOS documentation to help you get started. LtAP even has 3 Mini-SIM slots for easy roaming management. Saves your time and money worldwide!
The unit comes with an extra miniPCIe slot, offering many expansion options. For example, you can install a second LTE modem for redundancy or a 5GHz interface to have dual concurrent 2.4 GHz / 5GHz AP + LTE. Another miniPCIe slot is already populated with the LTE modem.
LtAP has a RS232 serial port, which gives you console access for debugging, as well as full size USB for other devices.
RBLtAP-2HnD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40.
The new LtAP LTE kit is more than an access point – it is what you need it to be wherever you need it to be.
Specifications
Details | |
Product code | RBLtAP-2HnD&R11e-LTE |
Architecture | MMIPS |
CPU | MT7621A |
CPU core count | 2 |
CPU nominal frequency | 880 MHz |
CPU Threads count | 4 |
RouterOS license | 4 |
Operating System | RouterOS |
Size of RAM | 128 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 200’000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
IPsec hardware acceleration | Yes |
Powering
Details | |
Number of DC inputs | 3 (DC jack, PoE-IN, Automotive) |
DC jack input Voltage | 12-30 V |
Automotive input Voltage | 12-27 V |
Max power consumption | 24 W |
Max power consumption without attachments | 12 W |
Cooling type | Passive |
PoE in | Passive PoE |
PoE in input Voltage | 12-30 V |
Mobile
Details | |
2G Category | Class12 |
2G bands | 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
3G bands | 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz) |
LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink) |
LTE FDD bands | 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) |
LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) |
Wireless specifications
Details | |
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 2.5 |
Wireless 2.4 GHz chip model | AR9382 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
Details | |
10/100/1000 Ethernet ports | 1 |
Peripherals
Details | |
Number of SIM slots | 3 Modem (Mini SIM) |
MiniPCI-e slots | 2 |
Serial console port | RS232 |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1 |
Other
Details | |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
GNSS standards | GPS |
Certification & Approvals
Details | |
Certification | CE, FCC, IC, E-MARK, EAC, ROHS |
IP | IP54 |
Wireless specifications
2.4 GHz | Transmit (dBm) | Receive Sensitivity |
1MBit/s | 25 | -100 |
11MBit/s | 25 | -94 |
6MBit/s | 26 | -96 |
54MBit/s | 23 | -78 |
MCS0 | 26 | -96 |
MCS7 | 22 | -73 |
