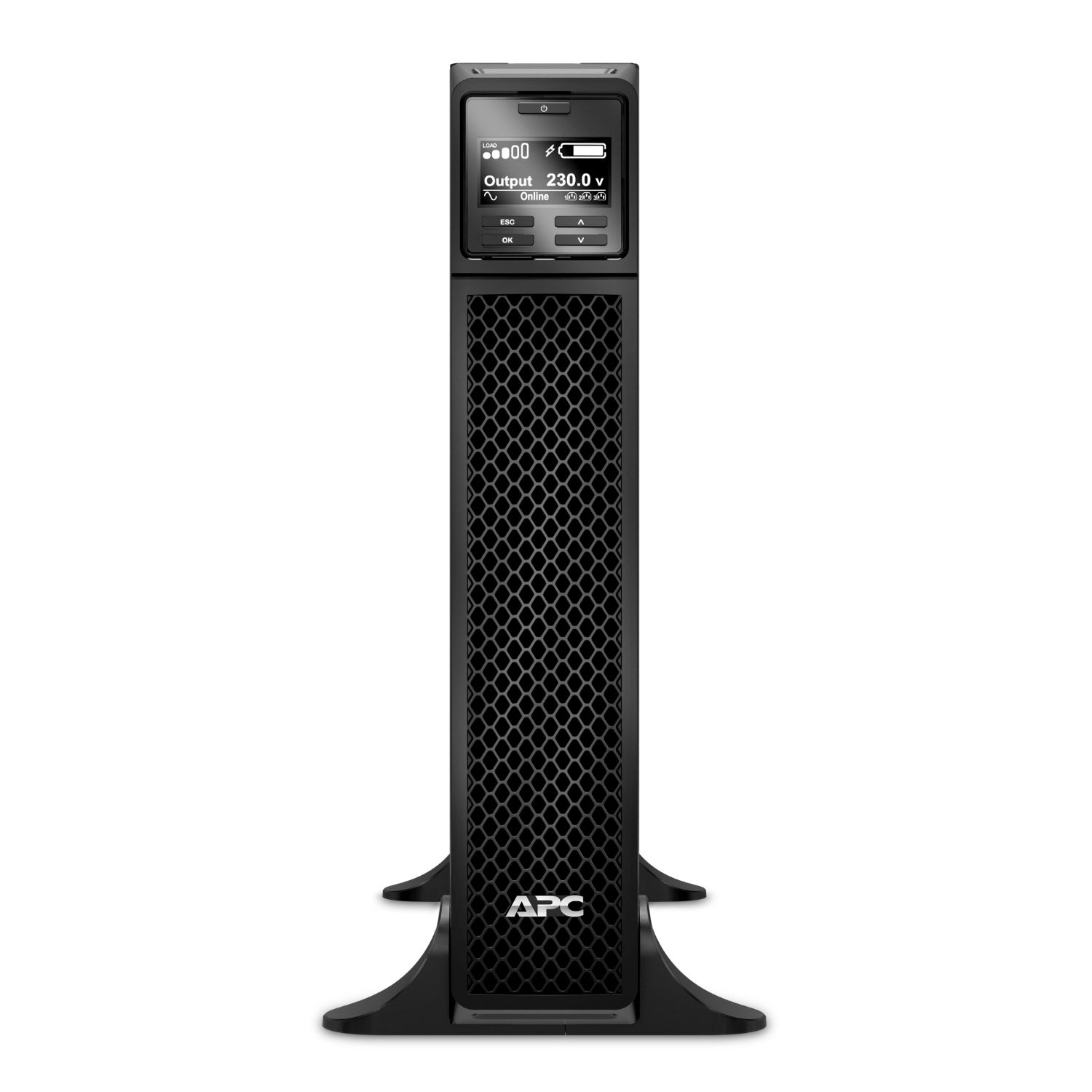

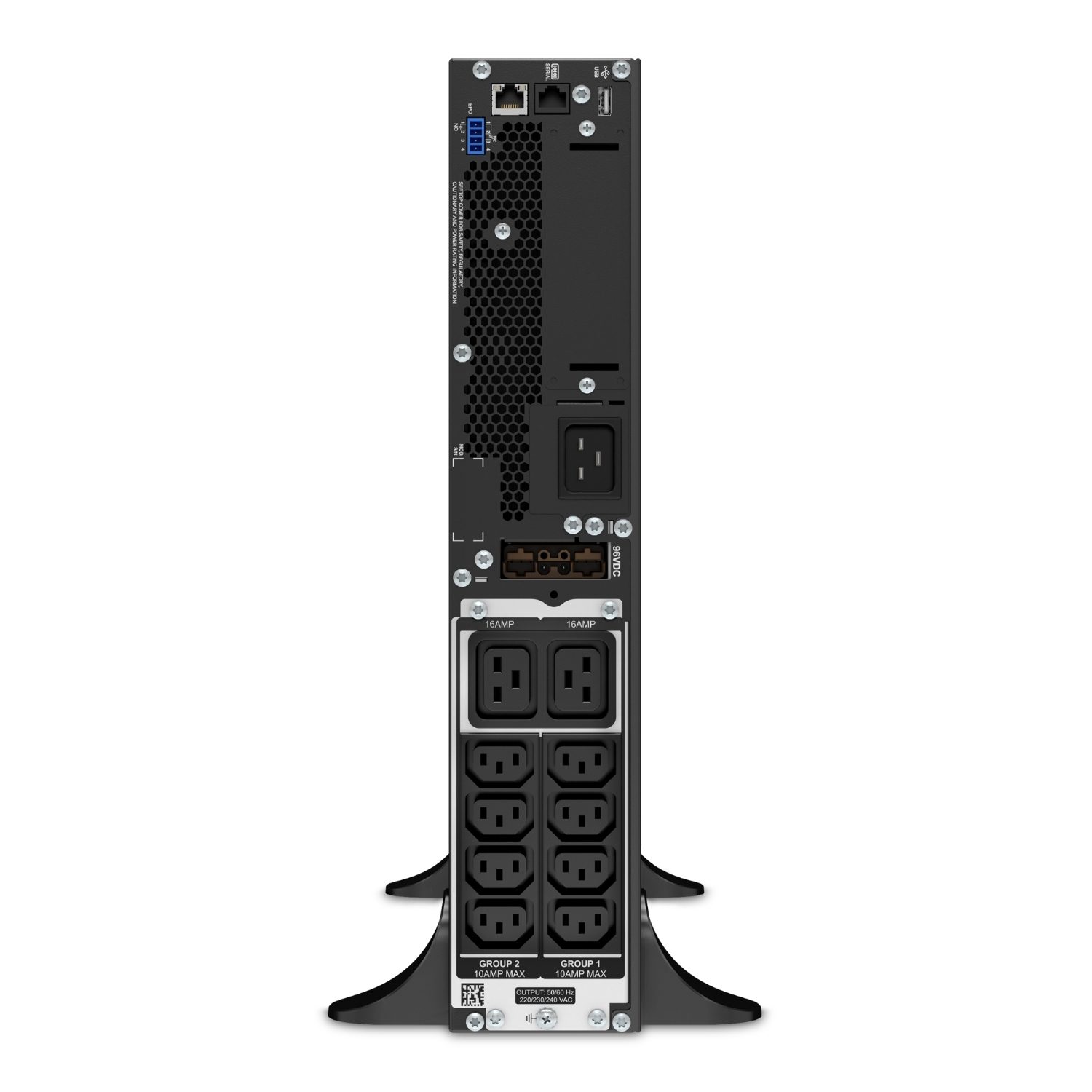

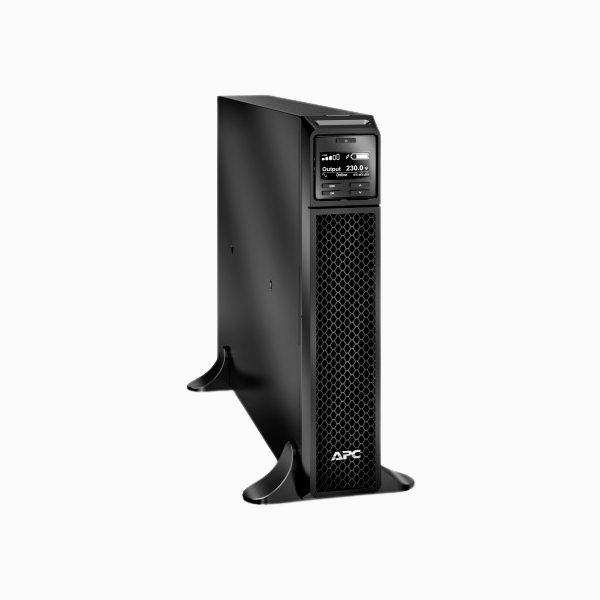

APC Smart-UPS On-Line 3kVA-Tower-230V SRT3000XLI

APC Smart-UPS On-Line 3kVA-Tower-230V SRT3000XLI

1,00 EGP

APC Smart-UPS On-Line SRT3000XLI

This 3000VA/2700W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance.

  • 3kVA
  • Tower
  • 230V
  • 8x C13+2x C19 IEC outlets
  • SmartSlot
  • Extended runtime
  • W/O rail kit


APC Smart-UPS On-Line 3kVA-Tower-230V SRT3000XLI

 This APC Smart-UPS On-Line 3kVA-Tower-230V SRT3000XLI 3000VA/2700W Online pure sine wave up provides scalable runtime while minimizing maintenance. The 2U rack/tower convertible SRT is external battery compatible for more runtime during prolonged outages. The UPS has an optional Network Management Card for network-based monitoring and PowerChute Business Edition for an unattended shutdown. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13/60320 C13 and 2x IEC 320 C19/60320 C19 outlets, and 2x IEC jumpers. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Its dimensions are 635mm (depth) x 432mm (height) x 85mm (width) and weighs 31.30kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, and VDE. They are designed for IT professionals or network administrators providing wide input voltage windows, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

APC Smart-UPS On-Line 3kVA-Tower-230V SRT3000XLI Specs:

Presentation High-density, double-conversion online power protection with scalable runtime.
Max. Capacity Used

100 %

Main Input Voltage 230 V
Other Input Voltage 220 V
240 V
Main Output Voltage 230 V
Other Output Voltage 220 V
240 V
rated power in W 2700 W
rated power in VA 3000 VA
plug standard BS1363A British
IEC 60320 C20
Schuko CEE 7 / EU1-16P
nb of power socket outlets 8 IEC 60320 C13
2 IEC Jumpers
2 IEC 60320 C19
cable length 2.44 m
number of cables 3
battery type Lead-acid battery
provided equipment CD with software
Country-specific detachable power cord
Documentation CD
Installation guide
Removable support feet
USB cable
Warranty card
product web sub-family High density
Number of power module free slots 0
Number of power module filled slots 0
redundant No
colour Black
height 43.2 cm
width 8.5 cm
depth 63.5 cm
net weight 31.3 kg
mounting location Front
mounting preference Lower
mounting mode Rack-mounted with kit
two post mountable 0
USB compatible Yes
mounting position Vertical
network frequency 40…70 Hz auto-sensing
input voltage limits 100…275 V adjustable (half load)
Maximum configurable power in W 2700 W
harmonic distortion Less than 2 %
output frequency 50/60 Hz +/- 3 Hz sync to mains
crest factor 3 : 1
UPS type Double conversion online
Wave type Sine wave
bypass type Internal bypass (automatic and manual)
Maximum configurable power in VA 3000 VA
product certifications CE
marking CE Mark
ambient air temperature for operation 0…40 °C
relative humidity 0…95 % non-condensing
operating altitude 0…10000 ft
ambient air temperature for storage -15…45 °C
storage Relative Humidity 0…95 % Non-condensing
storage altitude 0.00…15240.00 m
acoustic level 55 dBA
heat dissipation 703 Btu/h
IP degree of protection IP20
Batteries & Runtime
Run Time View Runtime Graph

Efficiency View Efficiency Graph

Battery recharge time 3 h
number of battery replacement quantity 1
additional information Configurable for 220 : 230 or 240 nominal output voltage
battery voltage 96 V
battery charger power 168 W rated
Battery power in VAH 505 VAh runtime
battery life 3…5 year(s)
Replacement battery APCRBC152

battery option SRT96BP 1 1515 VAh
SRT96BP 2 2525 VAh
SRT96BP 3 3535 VAh
SRT96BP 4 4545 VAh
SRT96BP 5 5555 VAh
SRT96BP 6 6565 VAh
SRT96BP 8 8585 VAh
SRT96BP 10 10605 VAh
extended runtime 1
Communications & Management
free slots 1
control panel Multifunction LCD status and control console
alarm Audible and visible alarms prioritized by severity
Emergency power off Yes
Surge Protection and Filtering
Surge energy rate 340 J
Packing Units
Package 1 Weight 36.74 kg
Package 1 Height 24.6 cm
Package 1 Width 59.9 cm
Package 1 Length 87.1 cm
Number of Units in Package 3 6
