Eaton 5E Tower UPS 850VA USB 230V 5E850iUSB

Eaton 5E Tower UPS 850VA USB 230V 5E850iUSB

Eaton 5E Tower UPS 850VA USB 230V 5E850iUSB

  • Load Capacity (VA): 850 VA
  • Load Capacity (Watt): 480 W
  • Product Family: 5
  • Product Type: Line-interactive UPS


Eaton 5E Tower UPS 850VA USB 230V 5E850iUSB

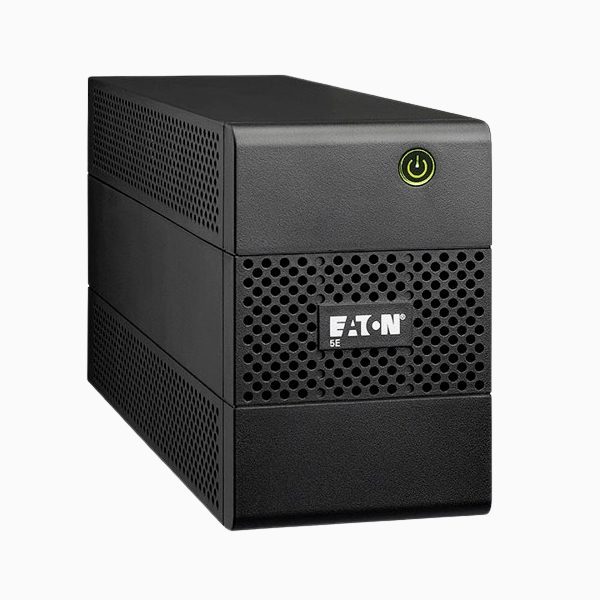

The Eaton 5E Tower UPS 850VA USB 230V 5E850iUSB uninterruptible power system (UPS) provides affordable power protection for your personal computer and peripherals. Valuable features such as local country power receptacles, the compact size is ideal for limited office and home working spaces.

The Eaton 5E is an essential line interactive UPS that provides cost effective and reliable power protection against power outages and bad power quality. Thanks to its small size the 5E can be installed easily either in a business environment or at home.

Eaton 5E UPS – Features


  • Work through under & overvoltage without wasting battery thanks to Automatic Voltage Regulation (AVR)
  • Rely on batteries anytime : 5E batteries are permanently recharged (even when off) and UPS can start without mains (Cold-start)
  • Avoid back door damages coming through phone lines : 5E USB models are equipped with data line surge protection (Internet/Tel/Fax)
  • Plug easily any equipment to the UPS (PC, HD TV, internet gateway,…) thanks to IEC and Schuko outlets (on DIN models)
  • Install 5E anywhere thanks to its small size
  • Easily manage your UPS from your PC
  • Ensure peace of mind thanks to a 2-year warranty (automatically included)
Topology Line Interactive with Automatic Voltage Regulation
Configuration Tower
Style Number 5E850iUSB
Part Number 5E850iUSB
Rating (VA/Watts) 850VA/480W
Dimensions (H x W x D, mm) 288 x 148 x 100
Weight (kg) 5.16
Warranty 2 years
Electrical Input
(1) IEC-320-C14

Eaton 5E Tower UPS 850VA USB 230V 5E850iUSB

Input Voltage Range 170-280V
Nominal Voltage 230 V
Operating Frequency 50/60Hz
Electrical Output
Nominal Voltage 230V
(4) IEC-320-C13

Eaton 5E Tower UPS 850VA USB 230V 5E850iUSB

Battery Management Permanent battery recharge, cold start
Communication Ports 1 USB port
Power Management Software Eaton UPS Companion software
Environmental & Standards
Audible Noise <40dB
Operating Temperature 0 to 40°
Performance – Safety – EMC IEC/EN 62040-2
Safety markings IEC/EN 62040-1
Approvals CE, CB report (TUV)
Data Line Protection Internet/Tel/Fax


Eaton 5E UPS Manual

Eaton 5E UPS Installation Instructions
