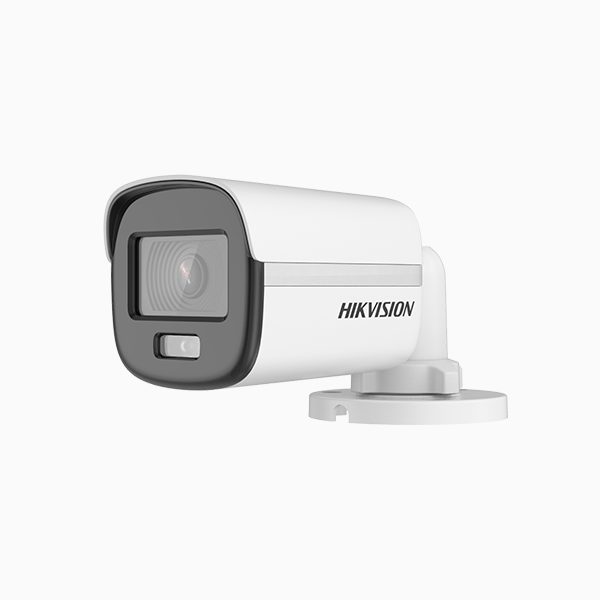

Hikvision 2 MP ColorVu Fixed Mini Bullet Camera DS-2CE10DF0T-PF

Hikvision 2 MP ColorVu Fixed Mini Bullet Camera DS-2CE10DF0T-PF

2 MP ColorVu Fixed Mini Bullet Camera

  • High quality imaging with 2 MP, 1920 × 1080 resolution
  • 24/7 color imaging with F1.0 aperture
  • 3D DNR technology delivers clean and sharp images
  • 2.8 mm, 3.6 mm, 6 mm fixed focal lens
  • Up to 20 m white light distance for bright night imaging
  • One port for four switchable signals (TVI/AHD/CVI/CVBS)
  • Water and dust resistant (IP67)

Description

Hikvision 2 MP ColorVu Fixed Mini Bullet Camera DS-2CE10DF0T-PF

Hikvision 2 MP ColorVu Fixed Mini Bullet Camera DS-2CE10DF0T-PF Specifications:

 High-quality imaging with 2 MP, 1920 × 1080 resolution
 24/7 color imaging with F1.0 aperture
 3D DNR technology delivers clean and sharp images
 2.8 mm, 3.6 mm, 6 mm fixed focal lens
 Up to 20 m white light distance for bright night imaging
 One port for four switchable signals (TVI/AHD/CVI/CVBS)
 Water and dust resistant (IP67)

Camera

  • Image Sensor2 MP CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
  • Signal SystemPAL/NTSC

Lens

  • Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
  • Focal Length & FOV

    2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115°

    3.6 mm, horizontal FOV: 76°, vertical FOV: 41°, diagonal FOV: 90°

    6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 58°

  • Lens MountM12

Illuminator

  • Supplement Light TypeWhite Light
  • Supplement Light RangeWhite Light Distance: Up to 20 m
  • Smart Supplement LightYes


  • Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
  • Image SettingsBrightness; Mirror;Sharpness; Anti-Banding;AGC
  • Frame Rate

    TVI: 1080p@25fps/30fps

    CVI: 1080p@25fps/30fps

    AHD: 1080p@25fps/30fps

    CVBS: PAL/NTSC

  • Day/Night ModeColor
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC;HLC;Global
  • Noise Reduction3D DNR/2D DNR
  • White BalanceAuto/Manual

Interface

  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • AlarmSolid Light Alarm (White Light)

General

  • Power

    12 VDC ± 25%

    *You are recommended to use one power adapter to supply the power for one camera.

    Max. 2.4 W

  • MaterialPlastic
  • Dimension161.1 mm × 70 mm × 70 mm (6.34″ × 2.76″ × 2.76″)
  • Approx. 229 g (0.50 lb)
  • Operating Condition-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
  • CommunicationHIKVISION-C
  • LanguageEnglish

Approval

  • ProtectionIP67

The Data Sheet

For More Hikvision products, Check Hikvision Products Page.

Visit the Contact Page to order the product.
