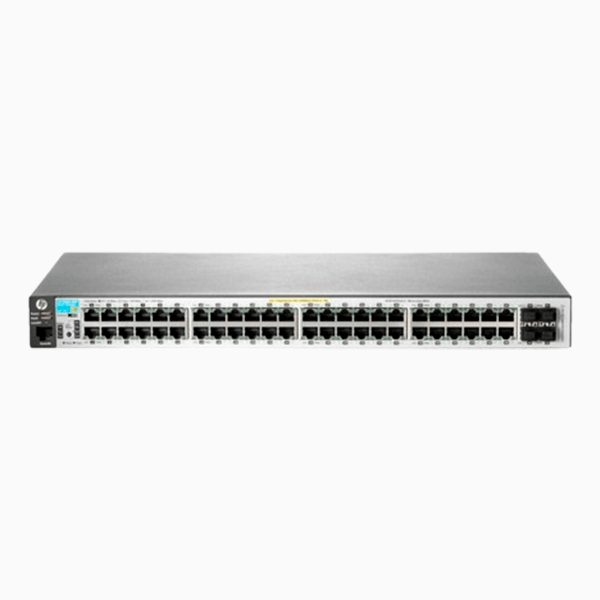

Aruba HPE 2530-48G-PoE+ Switch (J9772A)

Aruba HPE 2530-48G-PoE+ Switch (J9772A)

Aruba HPE 2530-48G-PoE+ Switch (J9772A)

  •  Cost-effective, reliable, and secure Aruba Layer 2 switch series
  •  Flexible Management via Aruba AirWave, Aruba Central, and Aruba ClearPass Policy Manager
  •  Right size deployment with choice of 8, 24, and 48 port Gigabit and Fast Ethernet models
  •  Up to 370W PoE+ to power IoT, APs, and cameras
  •  REST API support
  •  Simple deployment with Zero Touch Provisioning



Description

Aruba HPE 2530-48G-PoE+ Switch (J9772A)

The Aruba HPE 2530-48G-PoE+ Switch (J9772A) Series provides cost-effective, reliable, and secure access layer connectivity for enterprises, branch offices, and small and midsize businesses.

These fully managed switches deliver Layer 2 capabilities with enhanced access security, traffic prioritization, sFlow, and IPv6 host support. Right size deployment is available with a range of Gigabit and Fast Ethernet models including compact and fanless models which are ideal for use in quiet workspaces. PoE+ models deliver up to 370W to power access points, IP phones, and cameras

J9772A Specification

J9772A Specifications

Type Aruba 2530-48G-PoE+ Switch
System Specifications
Ports
  • · 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
  • · 4 fixed Gigabit Ethernet SFP ports
  • · 1 Dual-personality (RJ-45 or USB micro-B) serial console port.
Memory and processor Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 3 MB dynamically allocated.
Mounting Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting.
Management IMC – Intelligent Management Center; Command-Line Interface (CLI); Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB.
Performance (IPv6 Ready Certified)
1000 Mb latency < 2.3 µs (LIFO 64-byte packets)
100 Mb Latency < 7.4 µs (LIFO 64-byte packets)
Throughput Up to 77.3 million pps (64-byte packets)
Switching capacity 104 Gb/s
MAC address table size 16000 entries
Physical specifications
Dimensions (W x D x H) 44.3 x 32.26 x 4.45 cm (17.44 x 13.00 x 1.75 in) (1U height)
Weight 4.72 kg (10.4 lb)
Electrical specifications
Maximum heat dissipation 236 BTU/hr (248.98 kJ/hr), (switch only: 236 BTU/hr; combined switch + max. PoE devices: 1624 BTU/hr)
Voltage 100 – 127 / 200 – 240 V ac
Current 5.8/2.9 A
Idle power1 40.1 W
Maximum power rating2 476 W
PoE power 382 W
Frequency 50/60 Hz
NOTE: 1: Idle power is the actual power consumption of the device with no ports connected.

2: Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE power is the total power budget available to all PoE ports.

Environmental specifications
Operating temperature 0° to 45°C (32° to 113°F)
Operating relative humidity 15% to 95% @ 40°C (104°F), noncondensing
Non-operating/storage temperature -40° to 70°C (-40° to 158°F)
Non-operating/storage relative humidity 15% to 90% @ 65°C (149°F), noncondensing
Altitude Up to 3 km (10,000 ft)
Acoustic Power: 33.6 dB, Pressure: 43.9 dB
Safety agency certifications
Safety UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1
NOTE: IEEE 802.3az applies to Gigabit models only; IEEE 802.3at and IEEE 802.3af apply to PoE+ models only. When using SFPs with this product, SFPs with revision “B” or later (product number ends with the letter “B” or later, e.g., J4858B, J4859C) are required.

Aruba HPE 2530-48G-PoE+ Switch (J9772A) DataSheet
