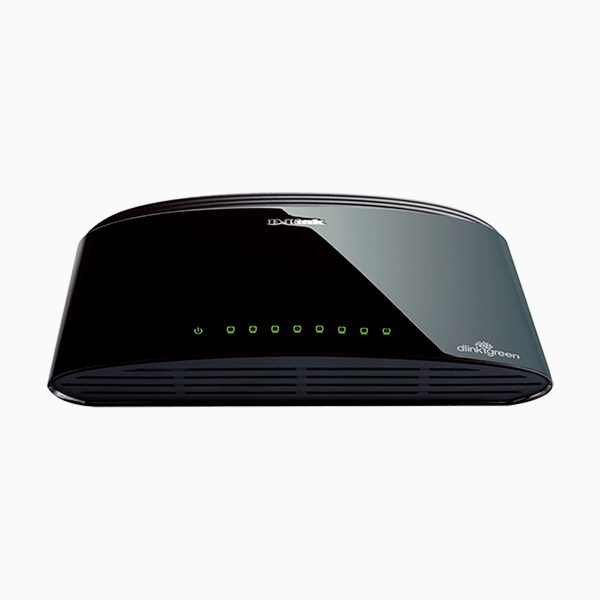

D-Link 8-Port 10/100BASE-T Unmanaged Switch DES-1008D

High-speed, reliable, and easy-to-setup network for your home or office

  • Eight 10/100 Mbps Fast Ethernet ports
  • Auto MDI/MDIX crossover for all ports
  • Store-and-forward switching scheme
  • Full/half-duplex for Ethernet/Fast Ethernet speeds
  • IEEE 802.3x Flow Control
  • Plug-and-play installation
  • RoHS compliant

D-Link 8-Port 10/100BASE-T Unmanaged Switch DES-1008D

The D-Link 8-Port 10/100BASE-T Unmanaged Switch DES-1008D uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.

All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.

Specifications

100Base-TX Interface 8
Auto MDI/MDIX Yes
Switching Capacity 1.6 Gbps
Max. Packet Forwarding Rate 1.19 Mpps
Store & Forwarding Forwading Yes
Dimension 148.06×84.57×34.7mm
Weight 0.12 8kg
Operation Temperature 0 ~ 40 °C
Storage Temperature – 10 ~ 70 °C
Operation Humidity 10% ~ 90% RH
Storage Humidity 5% ~ 90% RH
Maximum Power Consumption 2.19 W
Maximum Heat Dissipation 7.47228 BTU/hr
Acoustic 0 dB
MTBF 2,137,319 hours
Power Input AC:100 ~ 240 V
Packet Buffer Size 0.06 MB
FAN Fanless
Comply with RoHS 6 Yes
Power Saving By Link Status Yes
Power Saving By Cable Length Yes
MAC Address Table Size 1,024
802.3x Flow Control Yes



Download the datasheet.

To More D-Link Products, Check The D-Link Products Page.
