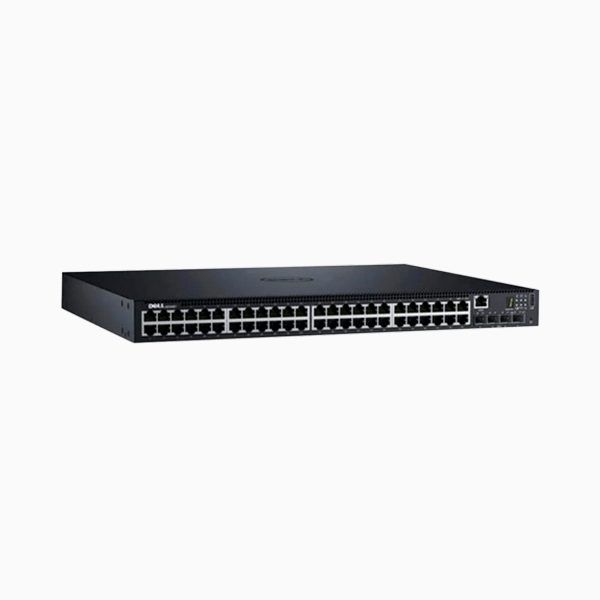

Dell EMC Networking Switch N1548P-PoE+-48x-1GbE + 4x 10GbE SFP

Dell EMC Networking Switch N1548P-PoE+-48x-1GbE + 4x 10GbE SFP

Dell EMC Networking Switch N1548P

Dell Networking N1548P, PoE+, 48x 1GbE + 4x 10GbE SFP + fixed ports, Stacking, IO TO PSU airflow, AC


Dell EMC Networking Switch N1548P-PoE+-48x-1GbE + 4x 10GbE SFP

The Dell EMC Networking Switch N1548P-PoE+-48x-1GbE + 4x 10GbE SFP offers a power-efficient Gigabit Ethernet (GbE) network-access switching solution with integrated 10GbE uplinks. The N1500 switch series has high-performance capabilities and wire-speed performance, utilizing a non-blocking architecture to handle unexpected traffic loads easily.

The Dell EMC Networking N1500 Series (Dell EMC Networking Switch N1548P-PoE+-48x-1GbE + 4x 10GbE SFP) has options for up to 48 Power-over-Ethernet Plus (PoE+) ports. You can attach devices with high power requirements (up to 30.8 watts) without running a separate power cable. PoE+ is particularly useful in older buildings where installing power to multiple, widespread locations can be prohibitively expensive.

 Designed for efficiency

Built to help keep operating costs down, the N1500 Series can operate at temperatures up to 113°F (45°C) to help reduce cooling costs.

 Simplify management with advanced features

The Dell Networking N1500 Series delivers easy deployment, outstanding interoperability, and a level learning curve for network administrators.

 Deploy with confidence at any scale

With high throughput and capacity to handle unexpected workloads, the N1500 Series switches are ideal solutions for fast-growing GbE networks that require high-density aggregation with seamless redundancy and availability.

N1548P Specification

N1548P Specification


Rack Height 1U
Rack-mounting kit Y
Ready Rails™ rack mounting system, no tools required not available
Dimensions in inches 1.7 x 17.3 x 15.2
Dimensions in millimeters 43.5 x 440.0 x387.0

Power and Cooling Hardware

Internal hot swappable power supply bays not available
Hot swappable power supplies (included) not available
Integrated power supply (not removable) standard
External power supply option available
Power supply redundancy option available
Removable fans not available
Redundant fans standard
Variable speed fans standard
Air flow IO to PSU (normal)
Integrated rear mini-SAS stacking ports not available
Power Supply (Watts) 600
Max Thermal Output (BTU/hr) 5824.3
Power Consumption Max (Watts) 1703

Stacking Attributes

User port stacking Y
Maximum stacking distance (meters) 100
Maximum stacking speed (full-duplex) 40Gbps

Environmental Operating Conditions

Operating Temperature in Celsius 0° to 45° C
Operating Temperature in Fahrenheit 32° to 113° F
Storage Temperature in Celsius -40° to 65° C
Storage Temperature in Fahrenheit -40° to 149° F
Operating Relative Humidity 95%
Storage Relative Humidity 85%
Power Supply Efficiency 80% or better in all operating modes
