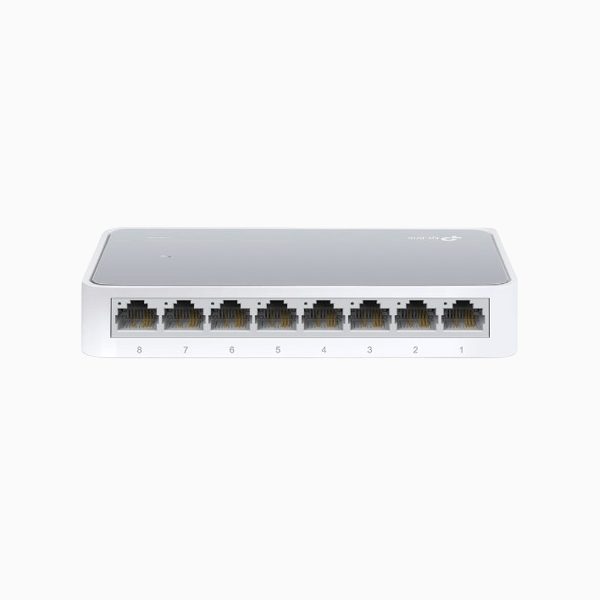

TP-Link 8-Port 10/100Mbps Desktop Switch TL-SF1008D

TP-Link 8-Port 10/100Mbps Desktop Switch TL-SF1008D

8-Port 10/100Mbps Desktop Switch

  • 8 10/100Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX
  • IEEE 802.3x flow control provides reliable data transfer
  • Plastic case, desktop design
  • Plug and play, no configuration required

Description

TP-Link 8-Port 10/100Mbps Desktop Switch TL-SF1008D

The TP-Link 8-Port 10/100Mbps Desktop Switch TL-SF1008D is designed for SOHO (Small Office/Home Office) or workgroup users. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save power consumption, making it an eco-friendly solution for your business network.

High Performance

TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x
CSMA/CD
Interface 8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity Fanless
External Power Supply 100-240VAC, 50/60Hz
(Output: 9VDC / 0.6A)
Buffer Size 768Kb
Data Rates 10/100Mbps at Half Duplex ;
20/200Mbps at Full Duplex
LED Indicator Power
Port network activity (on the network module)
Dimensions ( W x D x H ) 5.3 × 3.1 × 0.9 in.
(135 × 79 × 23mm)
Max Power Consumption 2W
Max Heat Dissipation 7.0 BTU/h
SOFTWARE FEATURES
Transfer Method Store and Forward
Advanced Functions Green Technology
802.3X Flow Control, Back Pressure
OTHERS
Certification FCC, RoHS
Package Contents 8-Port 10/100Mbps Desktop Switch
Power Adapter
User Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F);
Storage Temperature: -40℃~60℃ (-40℉~140℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
