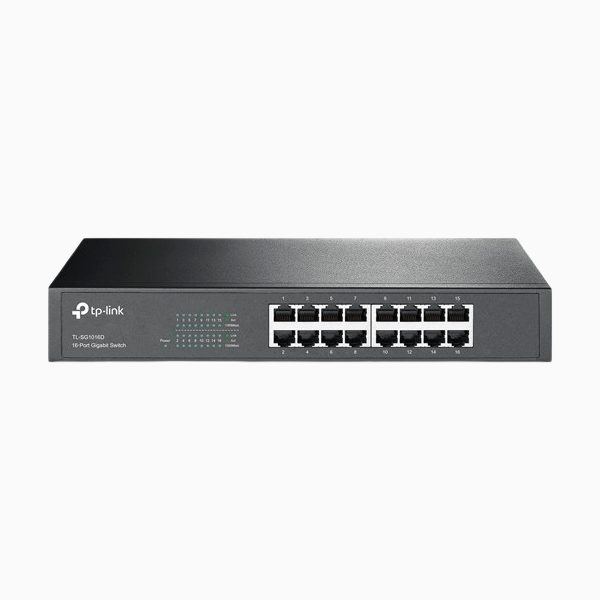

TP-Link TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch
You now have the choice to go green when upgrading to a gigabit network! This new generation TP-Link TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch
features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1016D can automatically detect the link status of each port and reduce the power consumption of ports that are idle.
HARDWARE FEATURES | |
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
Interface | 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) |
Fan Quantity | Fanless |
Physical Security Lock | No |
Power Supply | 100-240VAC, 50/60Hz |
Power Consumption | Maximum: 9.26W (220V/50Hz) |
Dimensions ( W x D x H ) | 11.6*7.1*1.7 in. (294*180*44 mm) |
Max Power Consumption | 9.95W(220V/50Hz) |
Max Heat Dissipation | 33.93BTU/h |
PERFORMANCE | |
Switching Capacity | 32Gbps |
Packet Forwarding Rate | 23.8Mpps |
MAC Address Table | 8K |
Jumbo Frame | 10KB |
Green Technology | Yes |
Transfer Method | Store-and-Forward |
OTHERS | |
Certification | FCC, RoHs |
Package Contents | 16-Port Gigabit Desktop/Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
