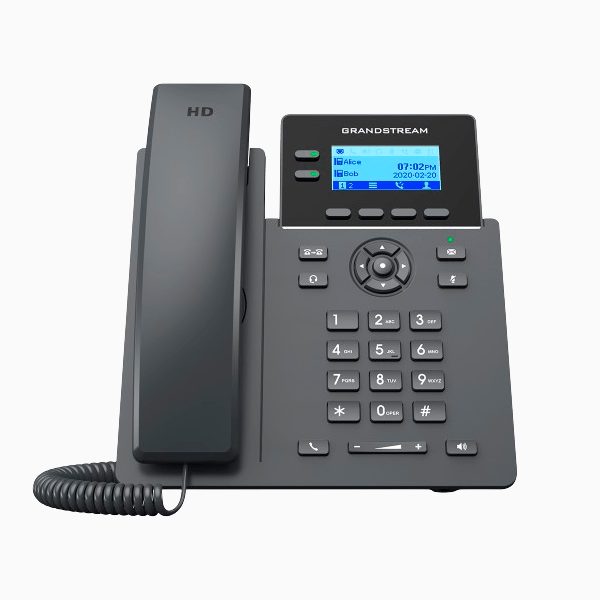

Grandstream GRP2602 2-Line Essential IP Phone

Grandstream GRP2602 2-Line Essential IP Phone

Grandstream GRP2602 2-Line Essential IP Phone

  • Supports 2 lines, and 4 SIP accounts
  • Supported by GDMS which provides a centralized interface to configure, provision, manage and monitor Grandstream devices
  • Electronic Hook Switch (EHS) support for Plantronics, Jabra, and Sennheiser headsets
  • Full-duplex speakerphone with HD audio to maximize audio quality and clarity
  • Equipped with noise shield technology to minimize background noise
  • The GRP2602P includes built-in PoE to power the device and give it a network connection
  • Supports 5-way audio conferencing for easy conference calls
  • Enterprise-level protection including secure boot, dual firmware images, and encrypted data storage
  • Swappable faceplate to allow for easy logo customization
  • GRP2602W includes built-in dual-band Wi-Fi support

Description

Grandstream GRP2602 2-Line Essential IP Phone

Part of the GRP series of Carrier-Grade IP Phones, the Grandstream GRP2602 2-Line Essential IP Phone is an essential 2-line model designed with zero-touch provisioning for mass deployment and easy management. It features a sleek design and a suite of next-generation features including Wi-Fi support (GRP2602W), 5-way voice conferencing to maximize productivity, integrated PoE (GRP2602P), full HD audio on both the speaker and handset to allow users to communicate with the utmost clarity, EHS support for Plantronics, Jabra, and Sennheiser headsets and multi-language support. The GRP series includes carrier-grade security features to provide enterprise-level security, including secure boot, dual firmware images and encrypted data storage.

For cloud provisioning and centralized management, the GRP2602 is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployment s of Grandstream endpoints. Built for the needs of on-site or remote desktop workers and designed for easy deployment by enterprises, service providers and other high-volume markets, the GRP2602 offers an easy-to-use and easy-to-deploy voice endpoint.

  • Protocols/Standards

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS(A

record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR069, SNMP, 802.1x, TLS, SRTP, IPv6

  • Network Interfaces

Dual switched auto-negotiation 10/100 Mbps Ethernet ports, integrated PoE

(GRP2602P only)

  • Wi-Fi

GRP2602W, Integrated dual-band Wi-Fi 802.11 a/b/g/n/ac (2.4Ghz & 5Ghz)

  • Graphic Display

132 x 48 (2.41’’) backlit graphical LCD display

  • Feature Keys

2 line keys with dual-color LED and support for 4 SIP account, 4 XML programmable

context sensitive soft keys, 5 (navigation, menu) keys. 8 dedicated function keys

for: MESSAGE(with LED indicator), TRANSFER,HEADSET, MUTE, SEND/REDIAL,

SPEAKERPHONE, VOL+, VOL

  • Auxiliary Port

RJ9 headset jack (allowing EHS with Plantronics & Jabra &Sennheiser headsets)

  • Voice Codecs and Capabilities

Support for G.729A/B, G.711µ/a-law, G.726, G.722(wide-band), G.723,iLBC, OPUS,

in- band and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC,

AGC, AJB

  • Telephony Features

Hold, transfer, forward, 5-way conference, call park, call pickup, shared-callappearance(SCA)/bridged-line-appearance(BLA), downloadable phonebook(XML,

LDAP, up to 2000 items), call waiting, call log(up to 800 records), off-hook auto

dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalized music

ringtones and music on hold, server redundancy and fail-over

  • HD Audio

Yes, HD handset and speakerphone with support for wideband audio

  • Base Stand

Yes, 1 angle position available (45°), Wall Mountable (*wall mount sold separately)

  • QoS

Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

  • Security

User and administrator level passwords, MD5 and MD5-sess based authentication,

256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control,

secure boot

  • Multi-language

English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese,

Korean, Japanese and more

  • Upgrade/Provisioning

Firmware upgrade via FTP/TFTP / HTTP / HTTPS, mass provisioning using GDMS/TR069 or AES encrypted XML configuration file

  • Power & Green Energy Efficiency

Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA;PoE:

IEEE802.3af Class 1, 3.84W; IEEE802.3az (EEE) (GRP2602P Only)

  • Temperature and Humidity

Operation: 0°C to 40°C

Storage: -10°C to 60°C

Humidity: 10% to 90% Non-condensing

  • Package Content

GRP2602 phone, handset with cord, base stand, universal power supply (GRP2602/

GRP2602W only), network cable, Quick Installation Guide

  • Physical

Dimension: 208mm (L) x 180mm (W) x 63.4mm (H) (with handset)

Unit weight: 670g; Package weight: 880g (GRP2602 & GRP2602W), 830g (GRP2602P)

  • GRP2602 / GRP2602P Compliance

FCC: Part 15 Class B; FCC Part 68 HAC;

CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1;

RCM: AS/NZS CISPR32; AS/NZS 62368.1; AS/CA S004;

IC: ICES-003; CS-03;

  • GRP2602W Compliance

FCC: Part 15 Subpart B,Class B; FCC Part 15 Subpart E,15.407; FCC Part 68;

CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; ETSI EN 301 893;

RCM: AS/NZS CISPR32; AS/NZS 62368.1; AS/CA S004;

IC: RSS-Gen; ICES-003; CS-03.

GRP2602 2-Line Essential IP Phone DataSheet
