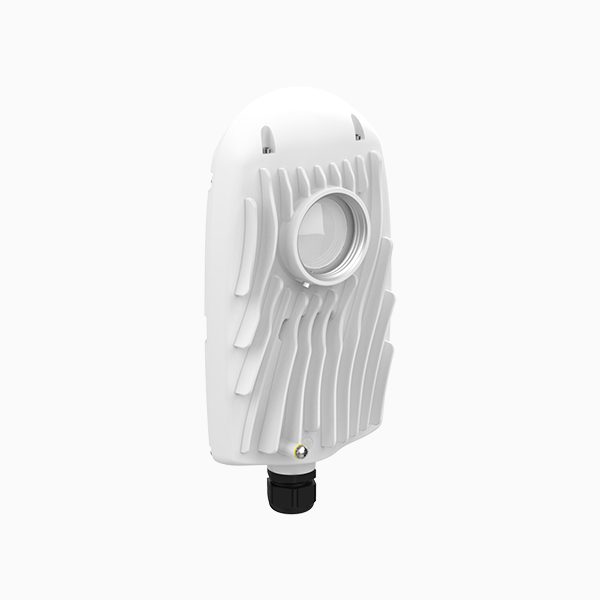

Mimosa B5x

The Mimosa B5x is one of the industry’s fastest unlicensed, point-to-point (PTP), backhaul solutions. It’s ideal for short to medium range relay and tower links, custom-engineered collocation, and licensed 4.9 GHz spectrum. It’s modular, with the ability to connect X-series compatible twist-on antennas (12 dBi horn, 16 dBi horn, 20 dBi dish, 25 dBi dish).

Mimosa B5x



Mimosa B5x ’s native 8 dBi gain can be increased to 12, 16, 20, or 25 dBi using Mimosa’s modular X-series twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.

Integrated Radio with Modular Antenna Options

The B5x’s native 8 dBi gain can be increased to 12, 16, 20, or 25 dBi using Mimosa’s modular X-series twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.

As one of the highest capacity, unlicensed PTP solutions in the industry, it delivers up to 1.5 Gbps (IP). 160 MHz of aggregate channel capacity and GPS Sync mode provide added performance. Coupled with a rugged IP67 rating and modular twist-on antennas, it’s extremely flexible.

SPECIFICATIONS

B5x

Max Throughput

1.5 Gbps (IP)

Frequency

4900–6400 MHz

Weight

1.4 kg (3.1 lbs)

Power Consumption

20 W max

Gain

8 dBi (native)
12–25 dBi (with antennas)

IP Rating

IP67

Build Material

Die-cast aluminum

Max Out Power

30 dBm (single frequency)
27 dBm (dual frequency)



For More Mimosa Products, Check the Mimosa Products Page.
