Mimosa C5x

The C5x reduces localized noise and provides immunity from interference with breakthrough front-to-back and front-to-side performance from each of the X-series antennas. With an IP67 rating and extended 4.9–6.4 GHz frequency, you can take it almost anywhere.



Mimosa C5x

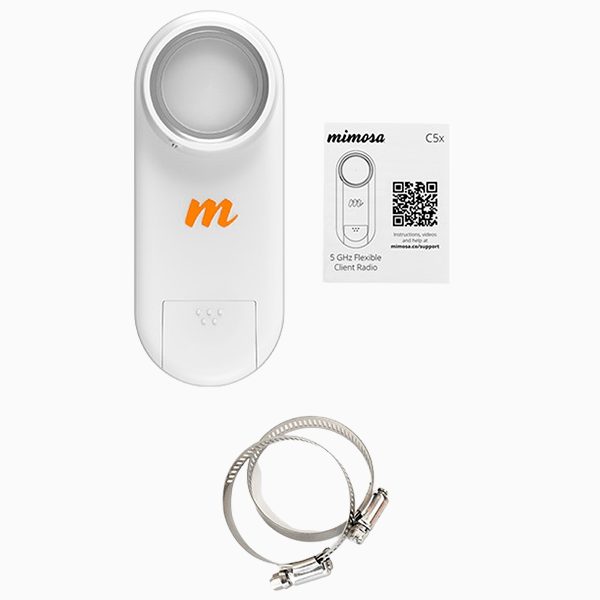

The Mimosa C5x is the industry’s most versatile, integrated radio with four modular twist-on antenna options. The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and cost efficiency, the C5x is the go-to PTP or PTMP solution for 5 GHz deployments.

The C5x’s native 8 dBi gain can be increased to 12, 16, 20, or 25 dBi using Mimosa’s modular X-series twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.

SPECIFICATIONS

C5x

Max Throughput

700 Mbps (IP) PTP or PTMP

Frequency

4900–6400 MHz

Weight

0.37 kg (0.82 lbs)

Power Consumption

12.9 W max

Gain

8 dBi (native)
12–25 dBi (with antennas)

IP Rating

IP55

Build Material

Die-cast aluminum

Max Output Power

27 dBm



For More Mimosa Products, Check the Mimosa Products Page.
